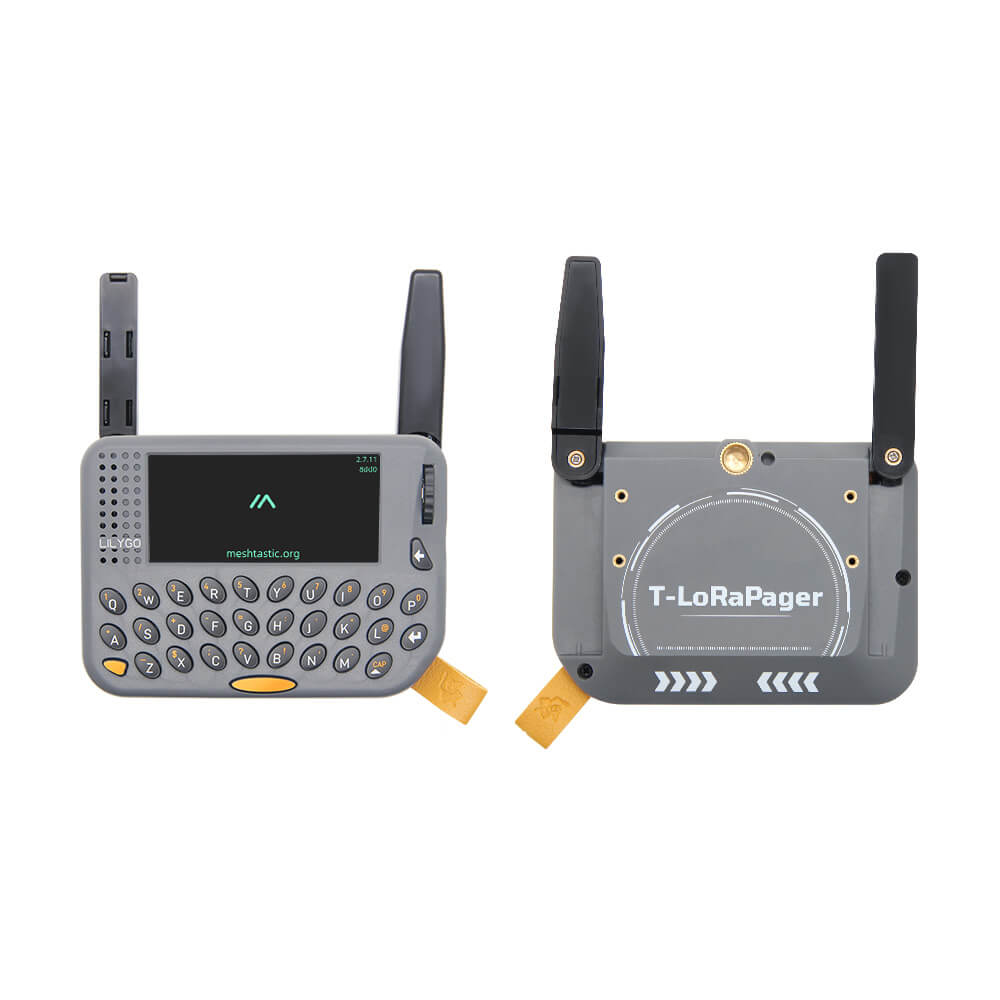

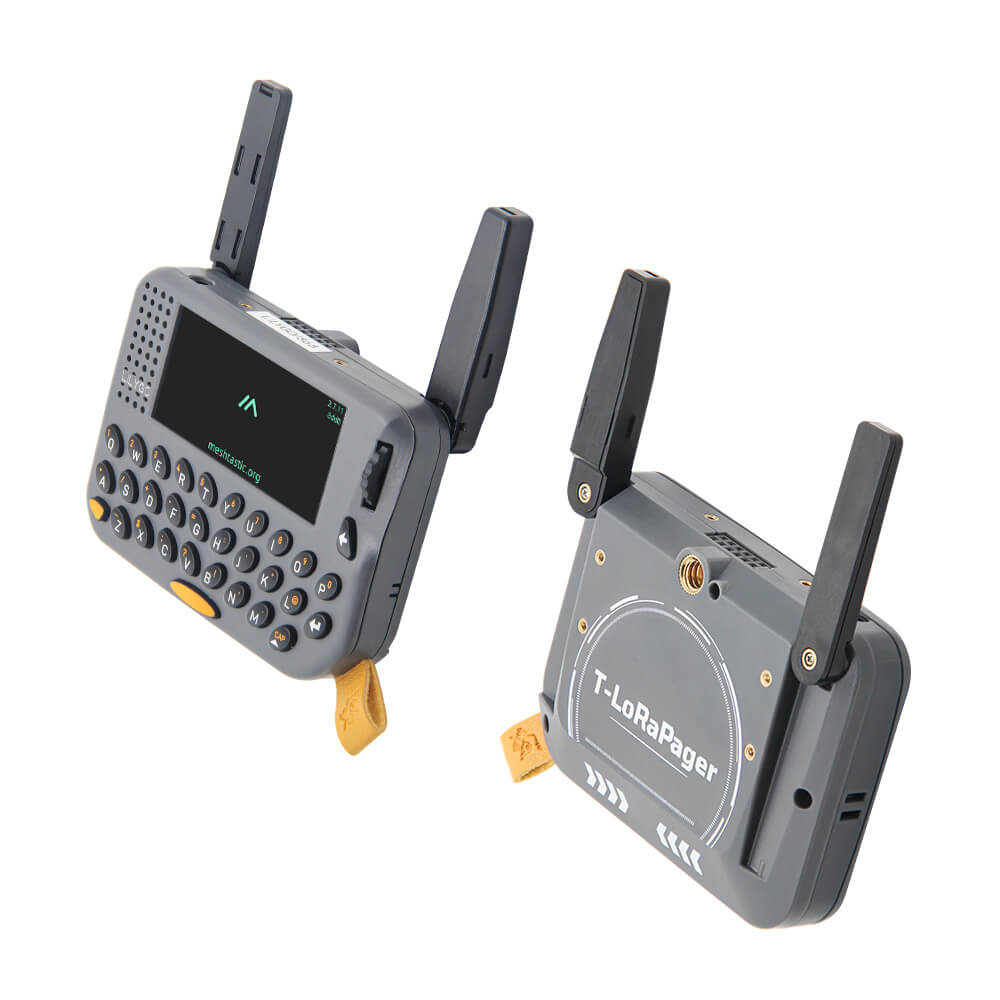

T-Lora Pager is the new member of the LILYGO T series, the compact exterior and foldable external antenna design, fully utilize the wireless performance while keeping the device aesthetically pleasing.
“ With LR1121 Module [K257-04] version supports three LoRa frequency bands: 868 MHz, 915 MHz, and 2.4 GHz.”
Core Functions Overview
- QWERTY keyboard
- AI support IMU (BHI260AP)
- 2.33-inch long screen (222 x 480 resolution)
- U-blox GPS module (MIA-M10Q)
- RFID/NFC + RTC circuitry
- TI Power Management Monitoring Chipset
- ES8311 (microphone/speaker/headphone jack)
- Encoder + Keypad
Specifications
| MCU | ESP32-S3 |
| Flash | 16MB |
| PSRAM | 8MB |
| Development | Arduino-IDE,VS Code,ESP-IDF |
| Board Function | RTC, Battery Charger, Battery Gauge, GPl0 Expand, Audio Power Amplifier, TF Card, Keyboard |
| Size | 106 x 89x 23mm |
| USB Charging | 5V, 500MAH |
Tech Support
|
ℹ️Product Information 💻Technical support |
Shipping List of T-Lora Pager [433/ 868 /915 MHz/ With LR1121 Module]:

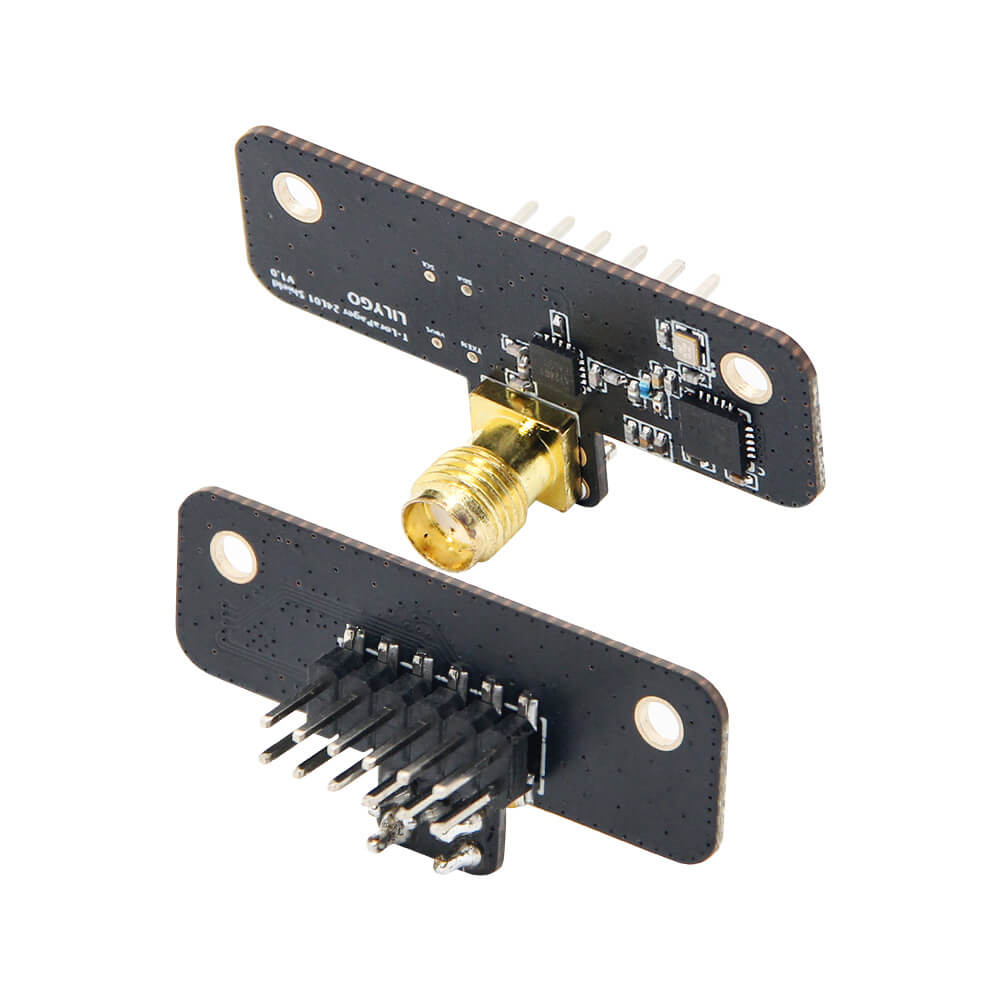

Shipping List of 24L01 2.4G Shield only :
