T-Zigbee

T-Zigbee

$6.89
$6.89
Sale Sold out

About Shipping

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

About Tax

We only charge you for the cost of the product and shipping, no taxes are included.

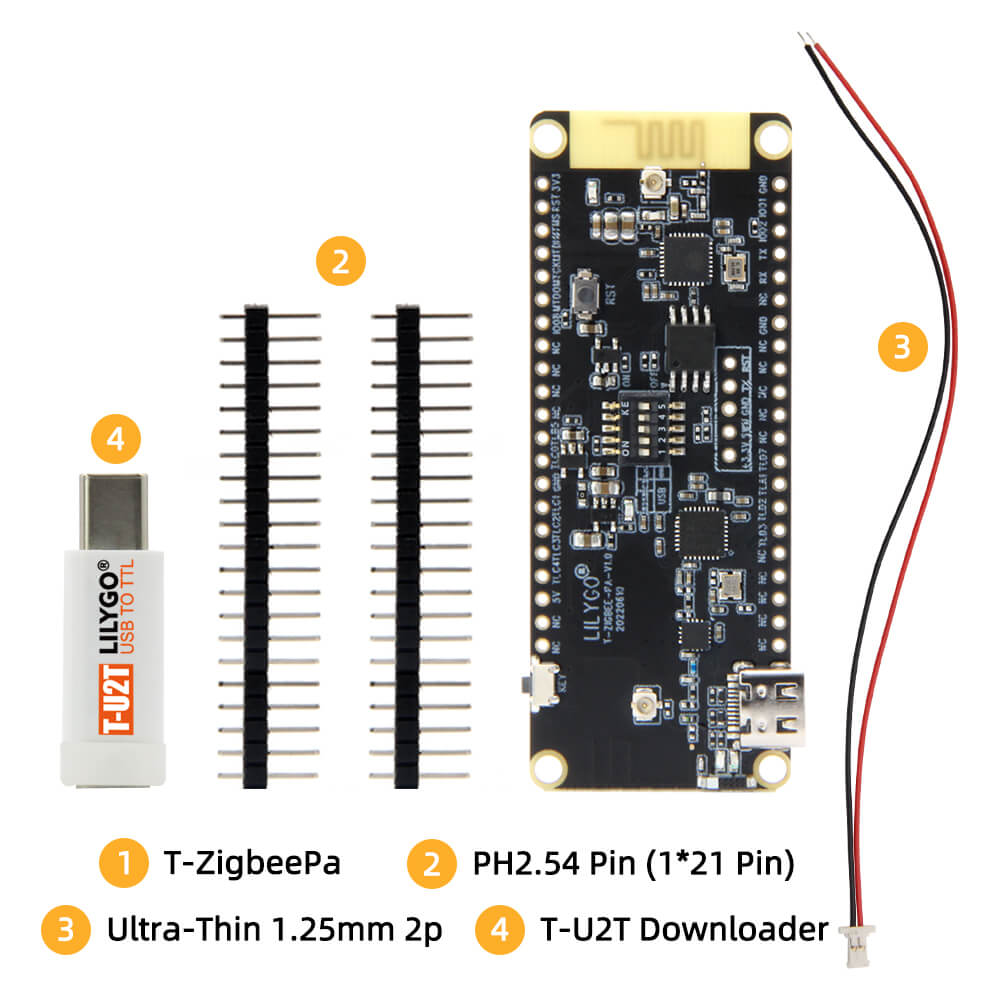

The T-ZigbeePA version adds a PA chip to the T-Zigbee version and replaces the antenna with stronger signal.

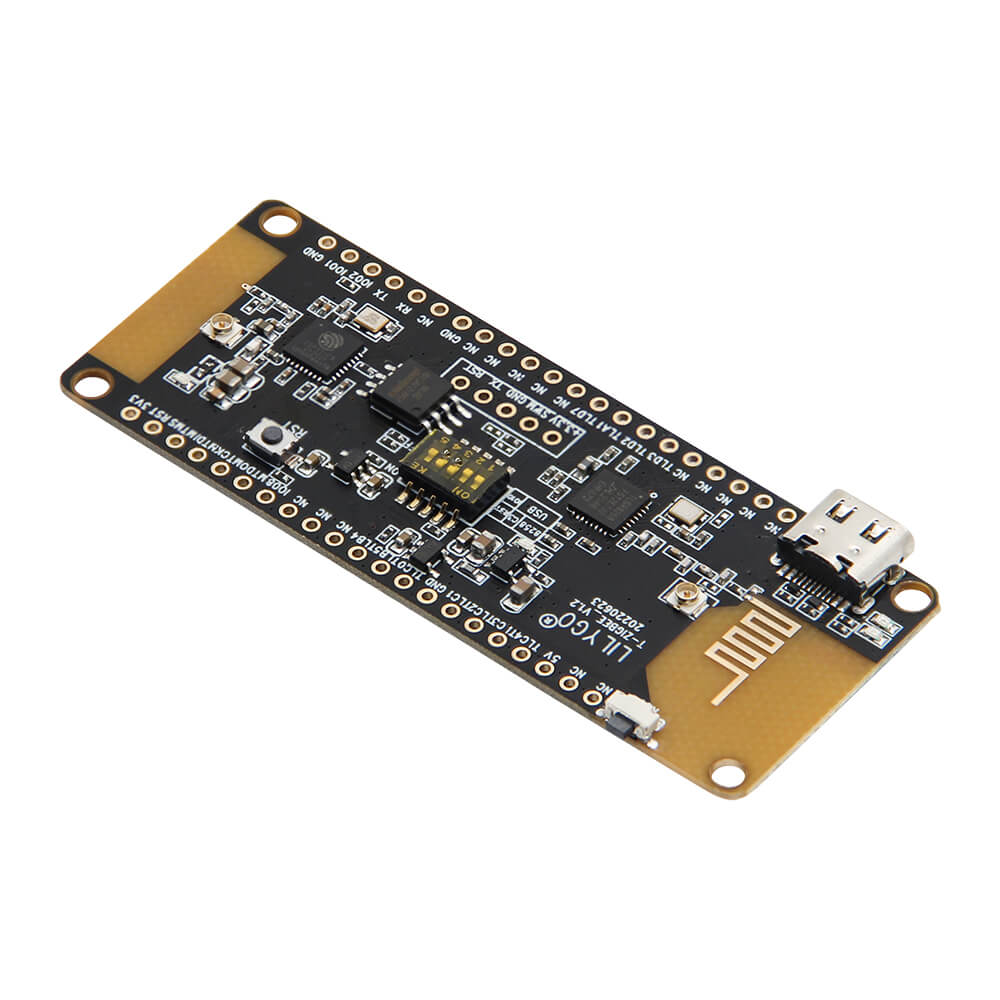

T-Zigbee is LILYGO®'s second motherboard with dual MCUs. (Notice: Two chips can work at the same time.)
Equipped with TLSR8258 Ultra-Low Power chip (Support BLE 5 Mesh, Zigbee, RF4CE, Thread 6LoWPAN, HomeKit, ANT 2.4GHz Proprietary Standard) and ESP32-C3 chip (Support WIFI and Bluetooth).

Kind Tips



Specifications

MCU 1 TLSR8258 Ultra-low-power MCU supporting ZigBee and BLE5
Wireless  Support BLE 5 Mesh, Zigbee, RF4CE, Thread
6LoWPAN、HomeKit、 ANT 2.4GHz proprietary standard
With PGA, AMIC, DMIC, 6-channel PWM function
Programmable LED Red LED: PD04
Green LED  PA00
MCU 2 ESP32-C3
Equipped with RISC-V processor SoC
Support 2.4 GHz Wi-Fi and Bluetooth 5 (LE)
Main frequency 160 MHz, built-in 400 KB SRAM, 384 KB ROM
 Programmable buttons IO02
LED IO03


Technology Support [Github]

If you need technical support please check the link to find more details.

T-Zigbee

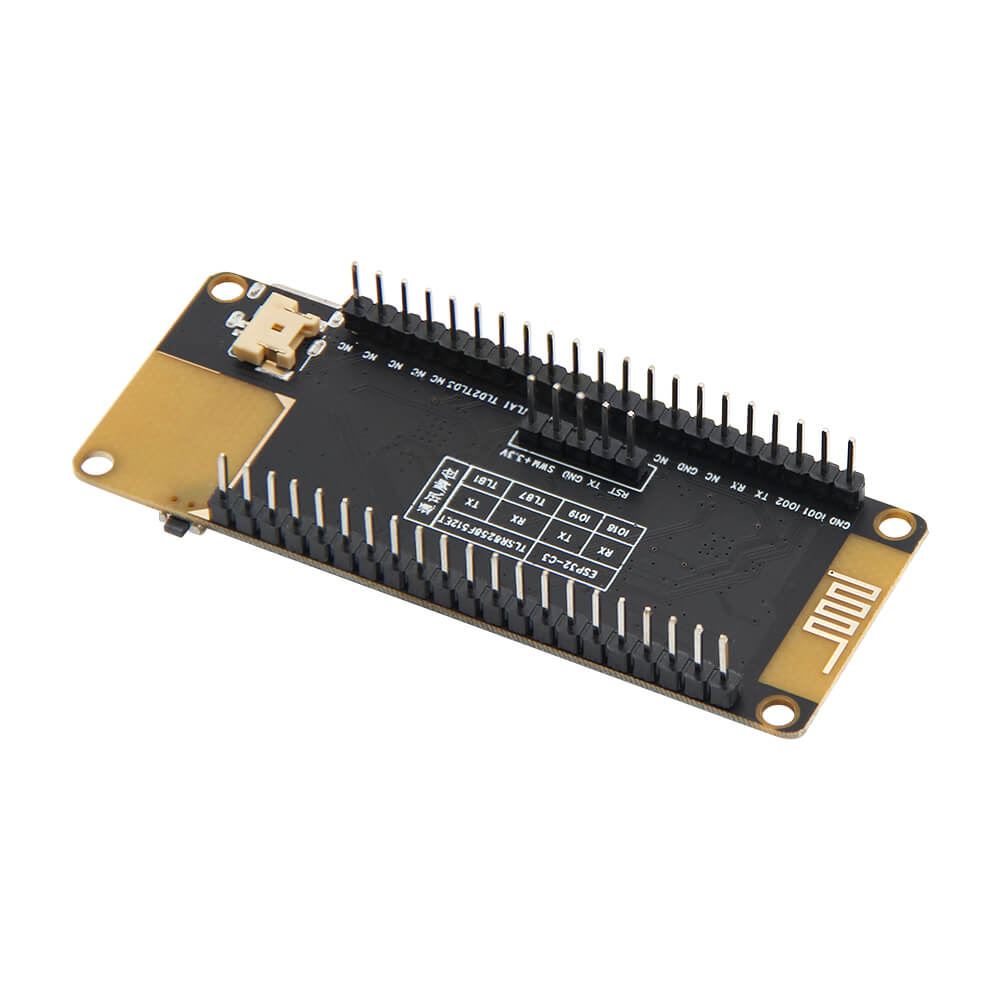

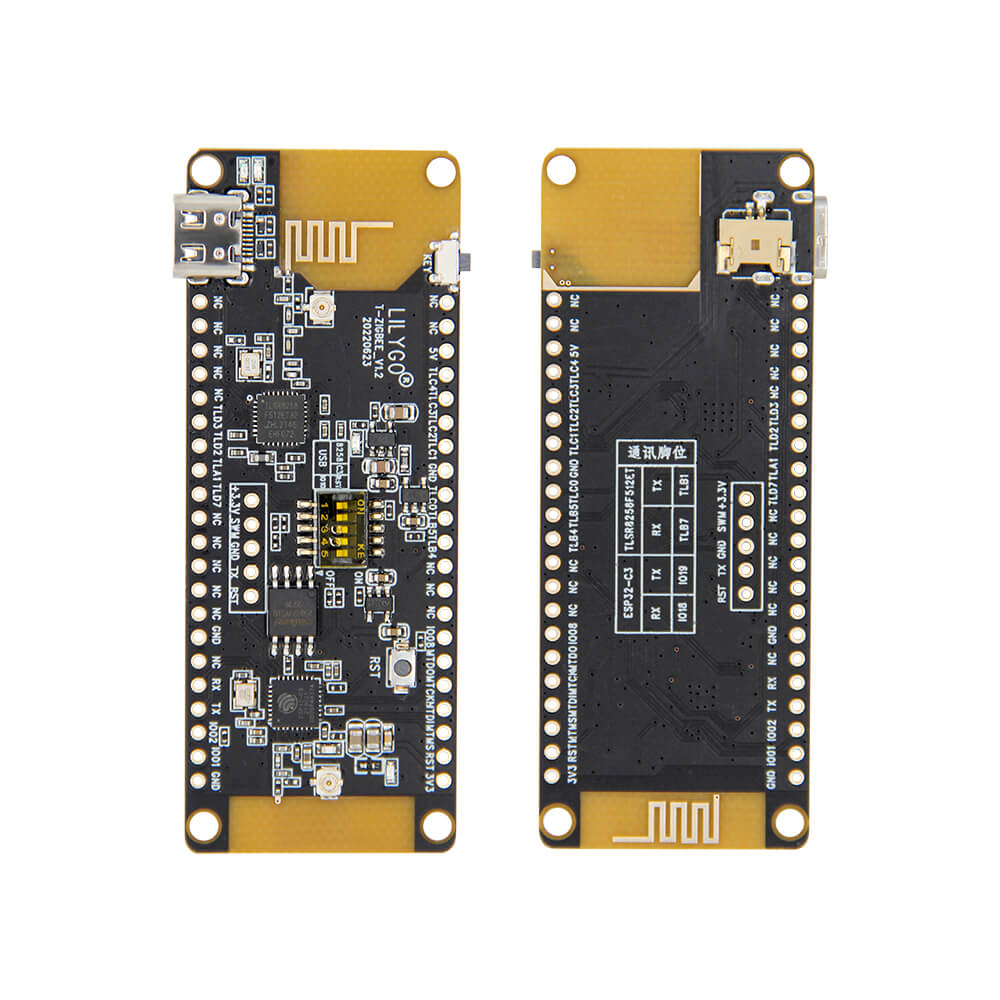

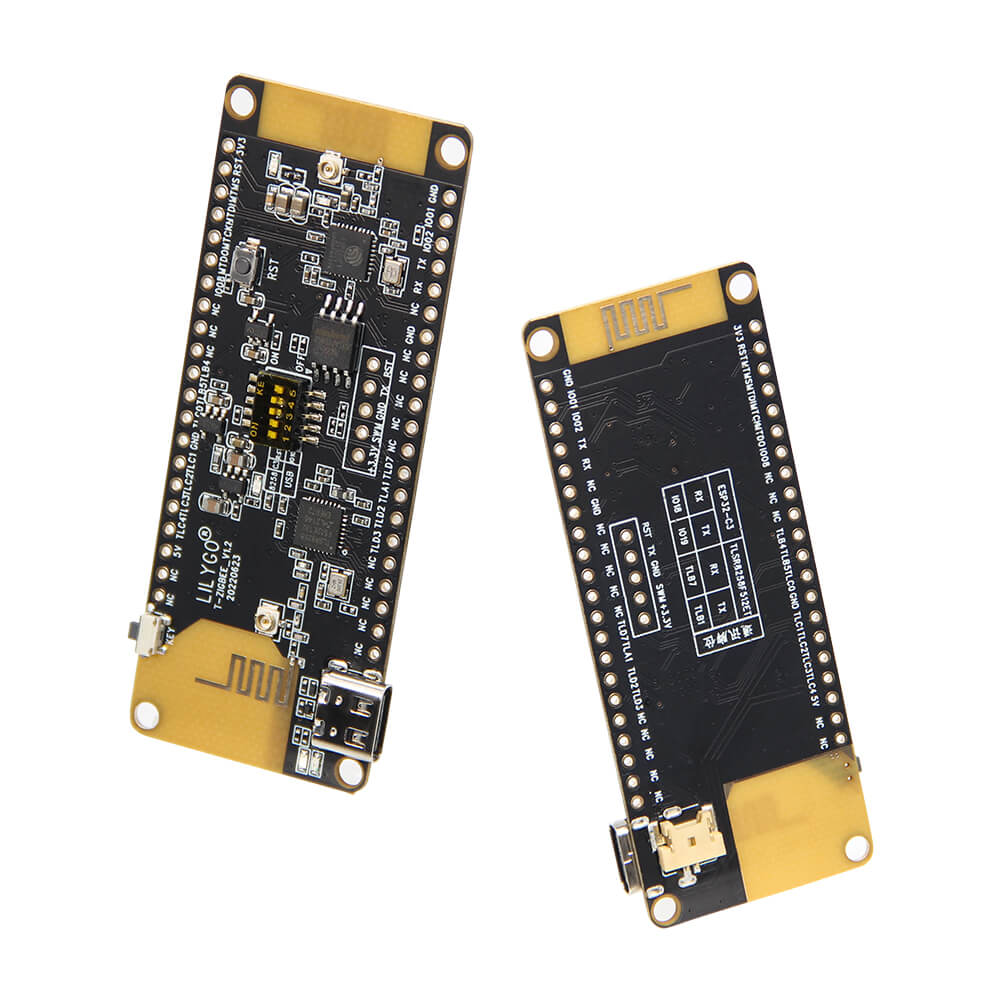

1. Appearance Details


2. Size

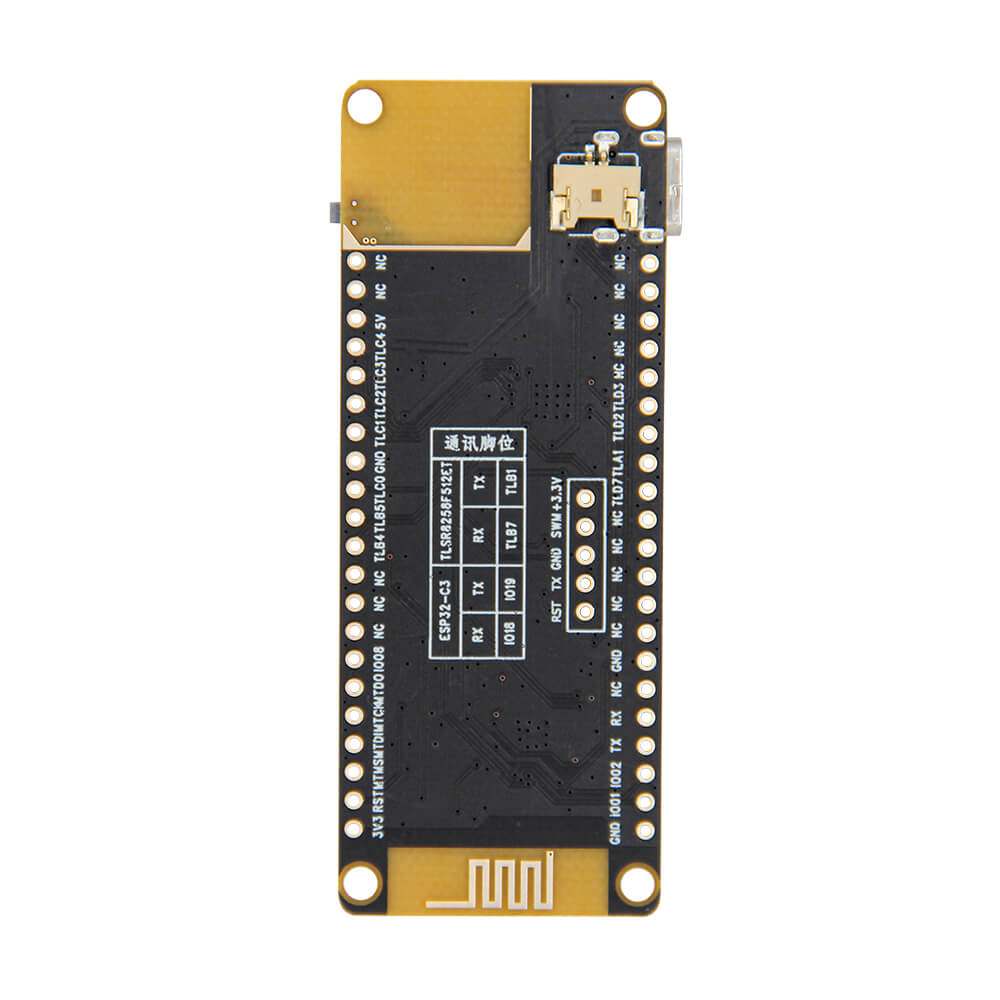

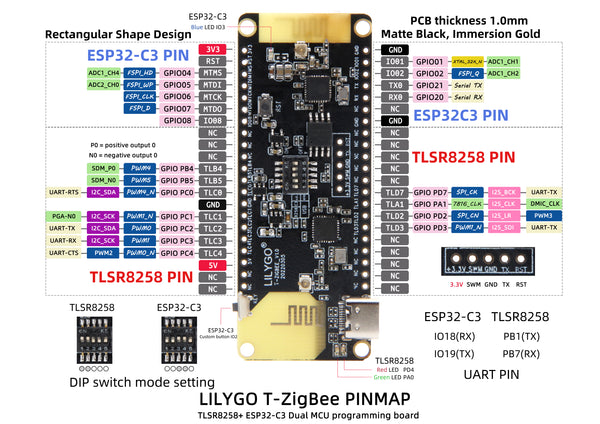

3. Pin Diagram

T-Zigbee

T-Zigbee PA

T-Zigbee+T-U2T




T-Zigbee PA



View full details

  • Who can use

    It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]

  • Accelerated processing

    International orders please make sure your address is in English
    For Hong Kong, Macau and Taiwan orders, please note your personal ID.

  • Got a question

    Click on the bubble in the bottom right corner where some frequently asked questions are answered, or just drop us a line.

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
J
Joshua Jonah
Great toy, docs are sparse though.

The hardware is really interesting and seems to work as it says. The documentation is pretty lacking though. There are examples of usage but all that is available for zbhci is mostly a generated docs placeholder. Somebody familiar with it needs to go at it and describe all the methods etc. I've been in the source and had to reverse engineer things to be able to use it.
