T-FPGA

T-FPGA

Designed for FPGA and embedded system development

Regular price $18.98
Regular price Sale price $18.98
Sale Sold out

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

For countries other than USA, we only charge [product cost + shipping cost], no tax.

Orders from US customers are adjusted according to different shipping channels:

1. For Standard Express Order: We charge【product cost + shipping cost + part of tax】this rate is only applicable to shipment from China warehouse.
(Since the tax is charged according to the declared amount, we have filtered the most suitable solution, and it is most likely that this shipping way does not need you to deal with the customs duty, but it is not absolute)

2. For DHL Order: We charge【product cost + shipping cost】no any tax, tax need you to pay attention to the local policy changes, when the parcel arrives at the US customs, deal with the tax matters by yourself.

----------

The above content is only for charging reference on lilygo.cc website, the specific tax situation still depends on the local country's policy requirements, once the parcel is sent out, you need to keep an eye on its status, and to assist in handling it as needed when it arrives at the local customs, we will also follow up during the process, if you have any

The circuit board is an integrated ESP32S3 and FPGA (GW1NSR-LV4CQN48PC6/I5) control chip. With the power management AXP2101 can be used to switch the voltage of different BANK areas. And there are as many as 6 data lines for communication between FPGA and MCU.
We are looking forward to you injecting your inspiration into this board with endless potential!

Specifications

MCU ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth5 (LE)
Development  Arduino, Platforml0-IDE, Micropython
Flash 16MB
PSRAM 8MB
Antenna Ceramic (Default)
Onboard functions Boot + Reset + Power Button
FPGA Chip GW1NSR-LV4CQN48PC6/15
Device GW1NSR-4C
Package QFN48P
Speed C6/15
LUT4 4608
Flash 256K
PSRAM 64M
HyperRAM 64M
NOR FLASH 32M
Hardcore processor Cortex-M3
Development Development
Designer Debug port JTAG

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-FPGA

Size

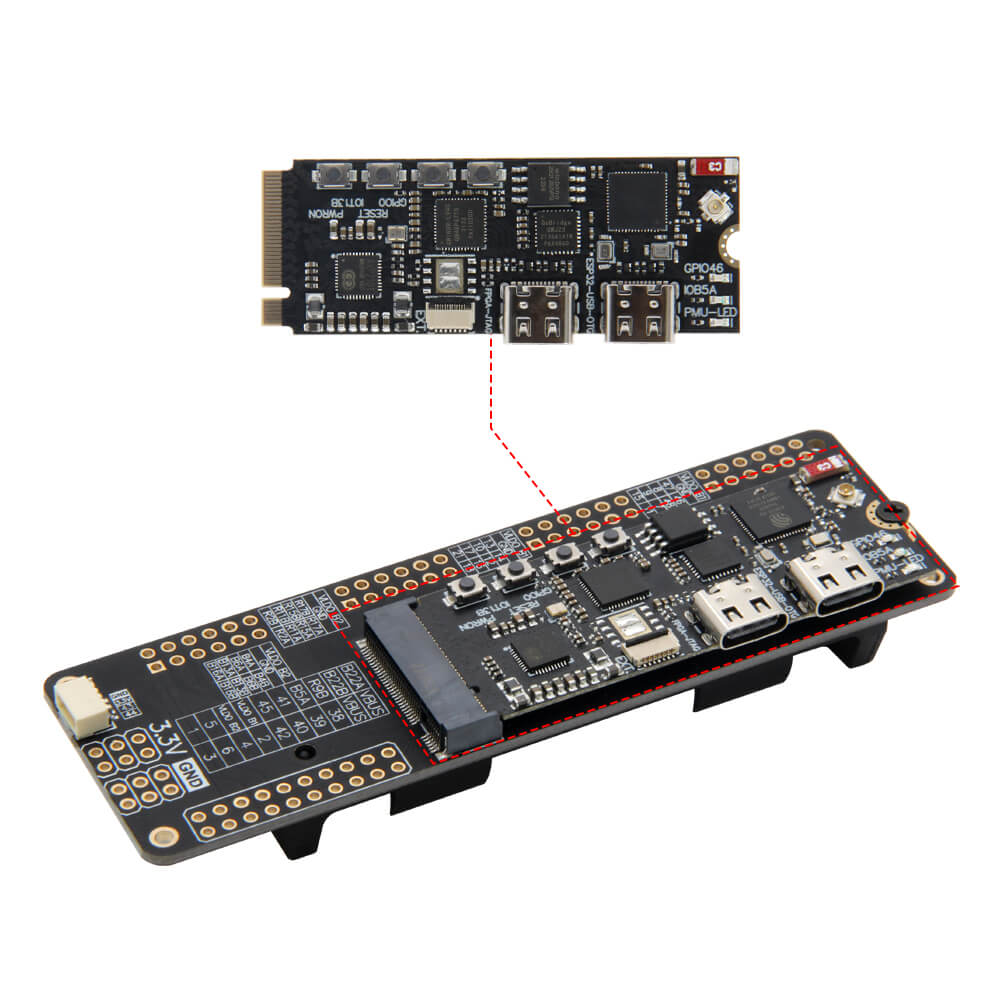

 T-FPGA Shield

 T-FPGA

 Pin Diagram



More Details

T-FPGA Shield

T-FPGA

View full details
  • Who can use

    It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]
