T-Embed CC1101

T-Embed CC1101

PN532 NFC/RFID I2C transceiver module

$54.67
$54.67
Sale Sold out

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

We only charge you for the cost of the product and shipping, no taxes are included.


We do not recommend replacing the case, there is a high risk of damaging the unit and affecting the IR function.

Built-in Sub-GHz module based on a CC1101 transceiver and a radio antenna (the maximum range is 50 meters).

RFID: 13.56MHz (HF)

Both the CC1101 chip and the antenna are designed to operate at frequencies in the 300-348 MHz, 387-464 MHz, and 779-928 MHz bands.

Specifications

MCU ESP32-S3 Dual-core LX7 microprocessor
Flash 16MB
Programming Platform Arduino-ide、 ESP-IDF
RSRAM 8MB
Onboard functions Reset + Boot Button , IR Transmit & Receive
Bat voltage detection IO04
Wireless Wi-Fi 802.11 b/g/n，BLE 5
 1.9 inch ST7789V IPS color TFT LCD
Interface SPI
Drive Chip ST7789V
Resolution 170(H)RGBx 320(V)


--- Tech Support---



ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

 🧑‍💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

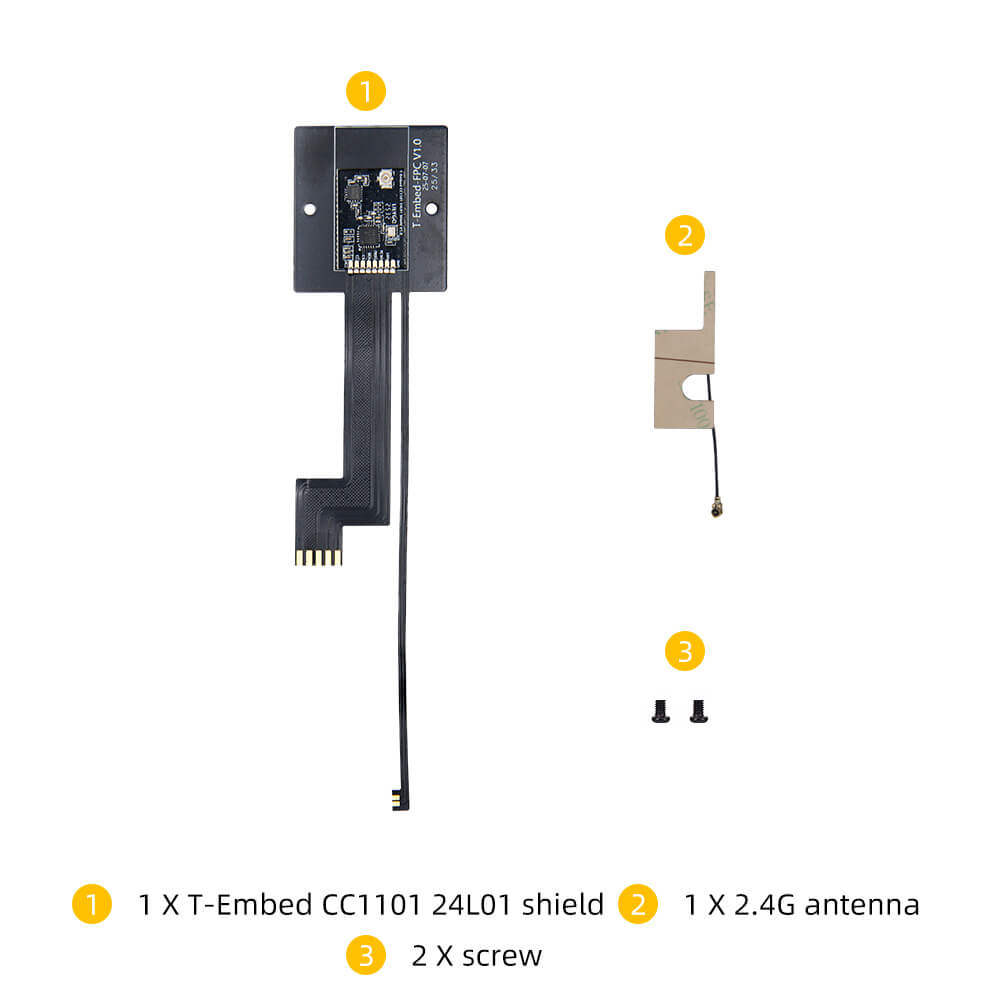

What's In The Box

View full details

  • Who can use

    It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]

  • Accelerated processing

    International orders please make sure your address is in English
    For Hong Kong, Macau and Taiwan orders, please note your personal ID.

  • Got a question

    Click on the bubble in the bottom right corner where some frequently asked questions are answered, or just drop us a line.
