T-Display SF32

T-Display SF32

Epicasso 2.0 integrated, self-developed 2.5D GPU, low-power dev board

$59.04
$59.04
Sale Sold out

Payment Method

Accepted payment methods

About Shipping

Methods & Delivery Time

  • DHL 7-10 business days
  • FedEx 7-10 business days
  • Standard Express 10-25 business days
  • Overseas Warehouse* 7-15 business days


*Available from: Germany, USA, Canada

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

About Tax

We only charge the product cost and shipping cost.

1. For Standard Express Order: You may not need to deal with customs clearance, just need to pay attention to the track of the parcel, but this is not absolute, if your parcel is inspected by the customs, then you need to assist in dealing with customs clearance.

2. For DHL/ FedEx Order: You need to deal with the relevant customs clearance matters, as well as pay the tariff, the specific amount of tariff please pay attention to the policy of your country.

----------------------

The above tariffs are for reference only, please pay attention to your country's tax policy for more detailed instructions, if you need our help or have questions please feel free to contact us.

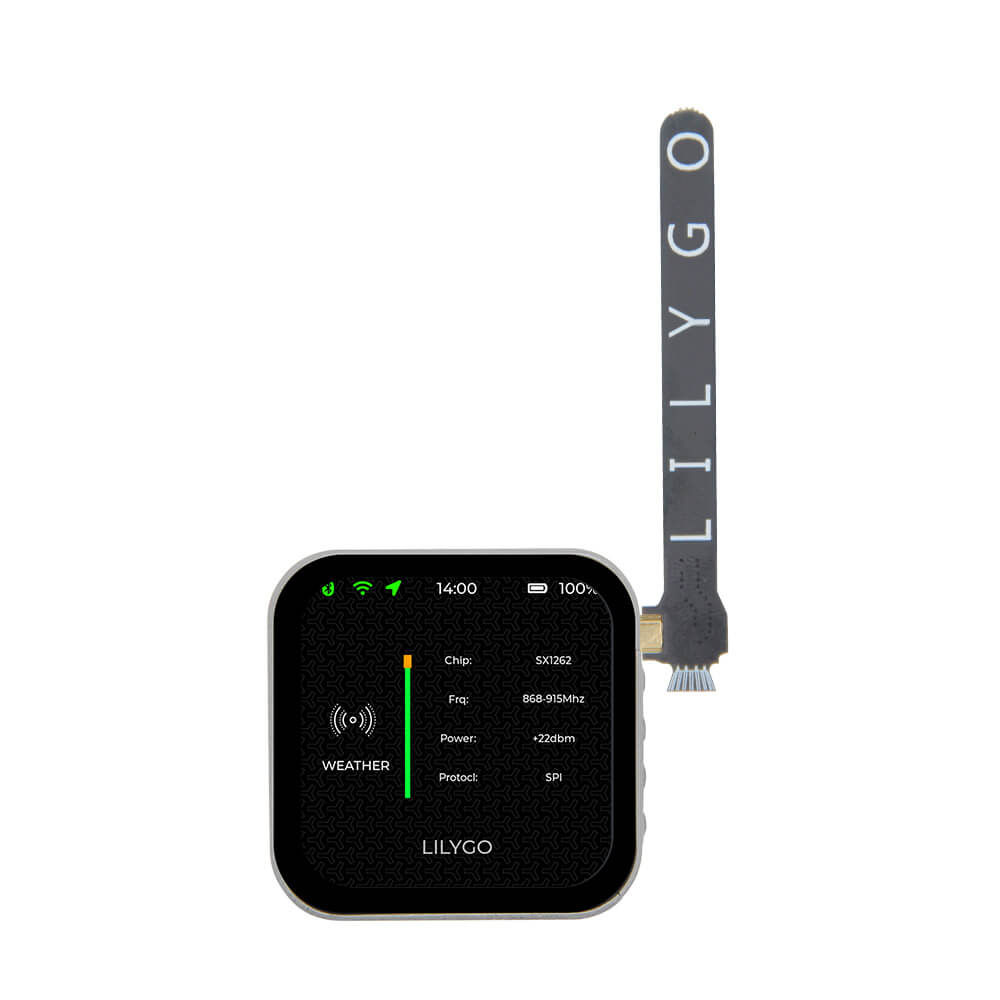

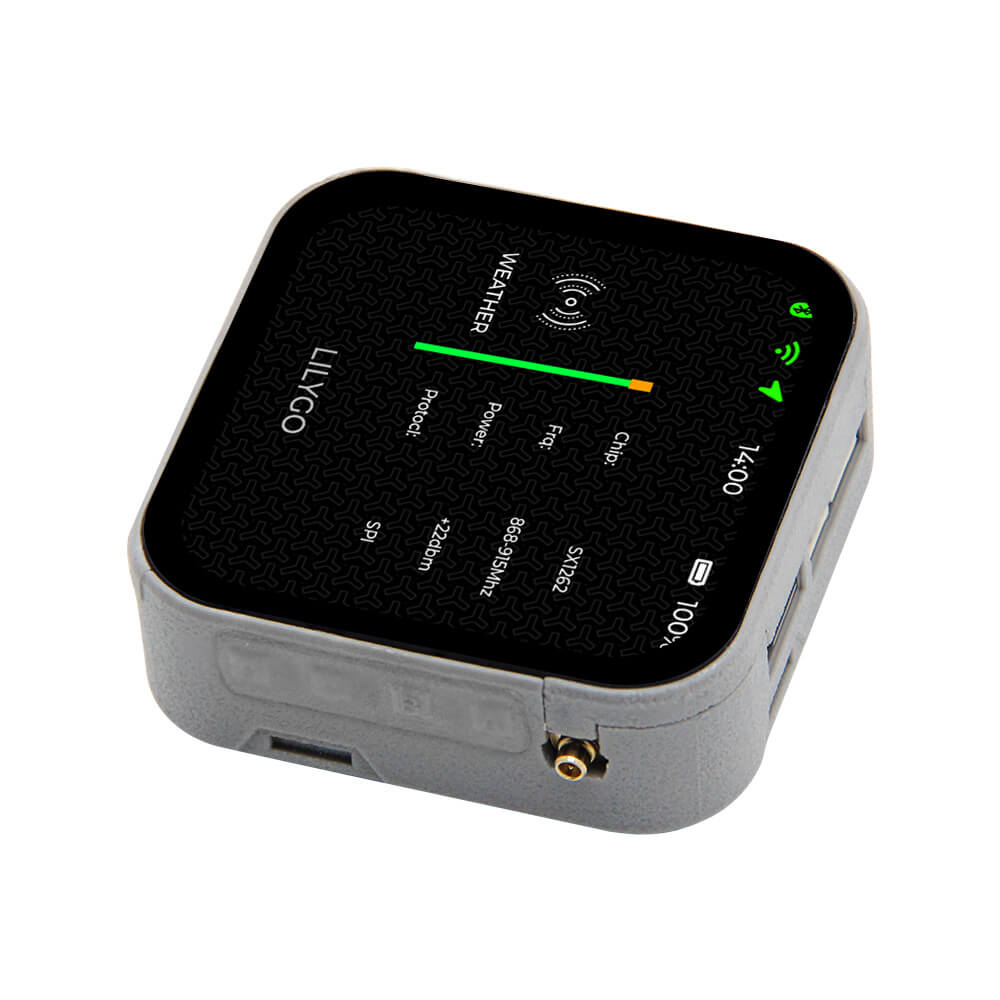

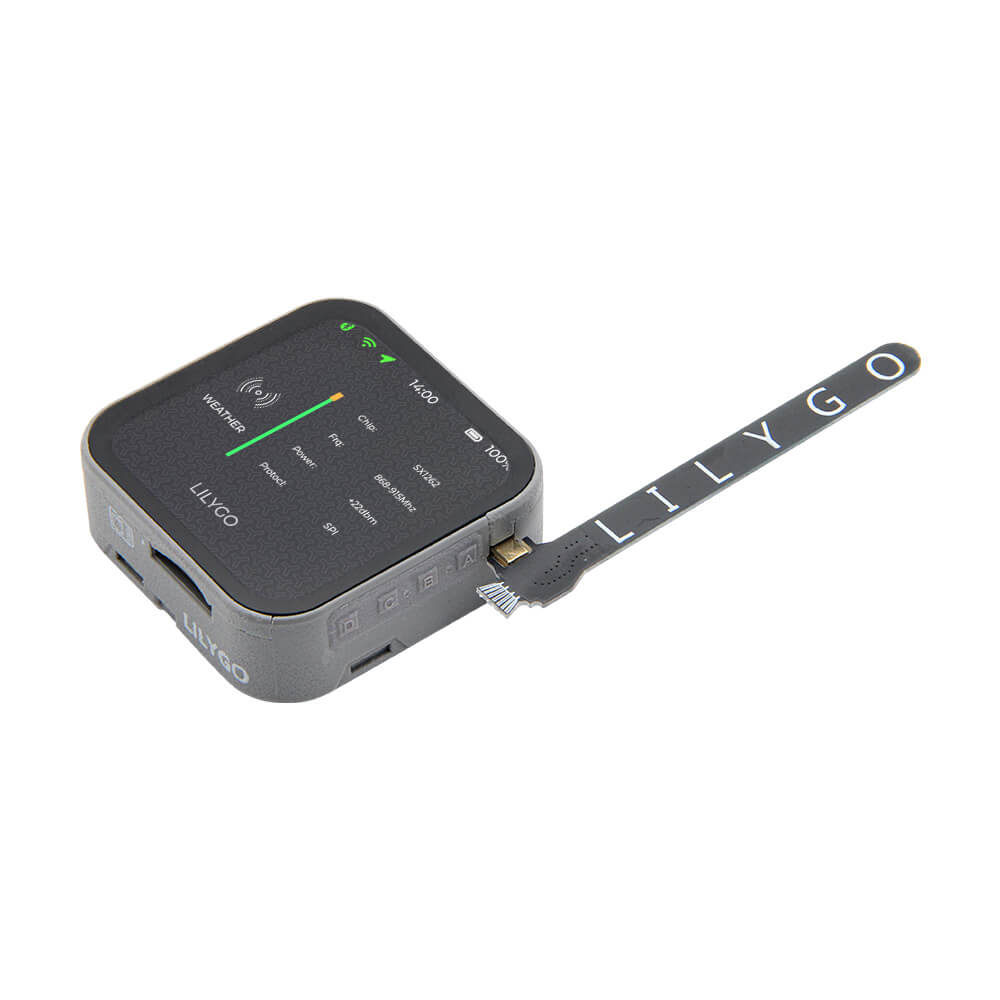

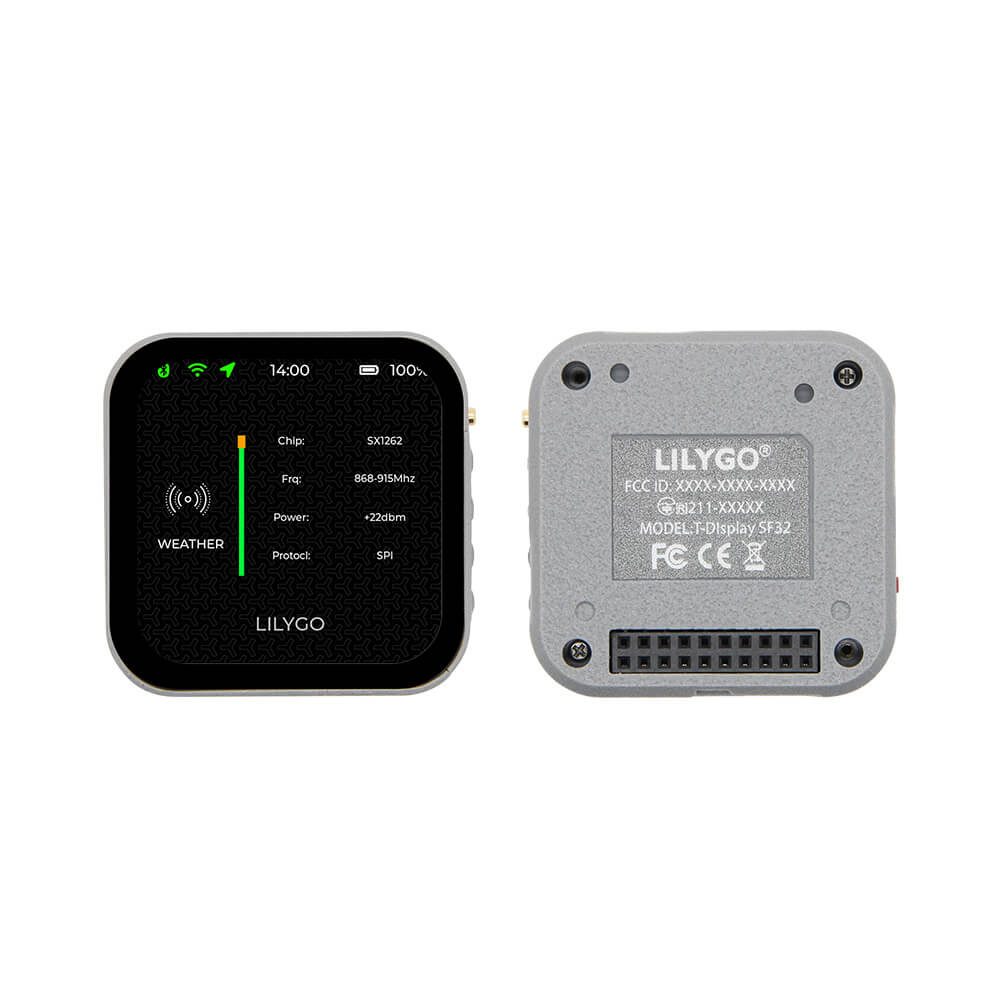

The T-Display SF32 is a development board built for smart wearables, smart home devices, industrial sensing, and IoT projects. It packs a 2.16" AMOLED screen, LoRa for long-range wireless, GNSS for global positioning, a 9-axis motion sensor, temperature and humidity sensing, 24-bit audio, a matrix keyboard interface, and USB fast charging—all in one board. Powered by a dual-core Arm Cortex-M33 chip (192 MHz + 24 MHz) with a 2.5D graphics engine, it delivers smooth visuals while keeping power consumption ultra-low.

Key specs

  • ✅ MCU: SiFli SF32LB52X ultra-low-power AIoT processor
  • ✅ CPU: Dual-core Arm Cortex-M33 (192 MHz + 24 MHz)
  • ✅ Display: 2.16" AMOLED + 2.5D graphics engine
  • ✅ Connectivity: LoRa (SX1262) + GNSS (L76K)
  • ✅ Sensors: 9-axis IMU (BHI260AP) + BME280 (temp/humidity)
  • ✅ Audio: 24-bit

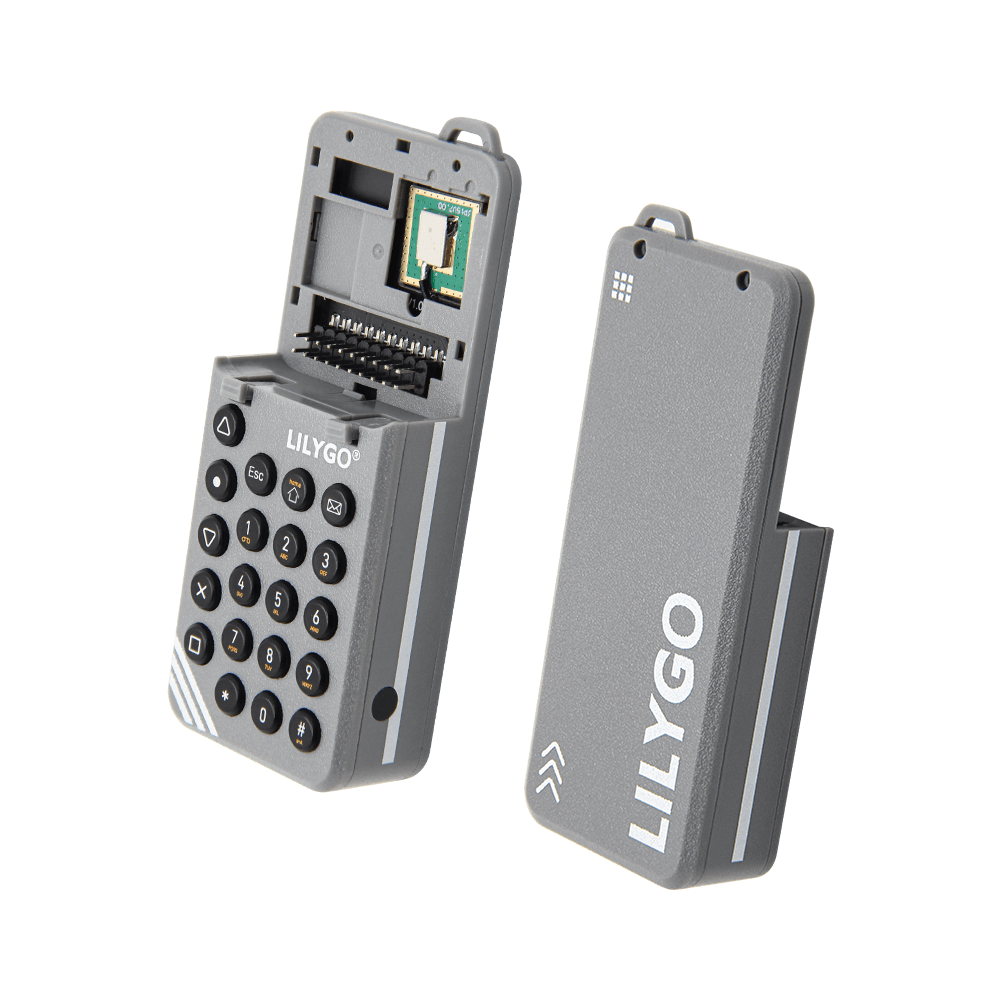

  • ✅ Interface: 8×8 matrix keyboard + USB PD fast charging
  • ✅ Applications: Wearables / Smart Home / Industrial IoT / LoRa tracking

Specifications

SoC SF32LB52X, ePicasso 2.5D GPU + AI Accelerator
Processor Arm Cortex-M33 STAR-MC1 big.LITTLE
CPU Low Power Dual-Core (192MHz + 24MHz) + BLE 5.3
Onboard Functions 16MB Flash + 8MB PSRAM, TF card, Built-in 3.8V 470mAh Battery, QWIIC 4-pin, Button x 4

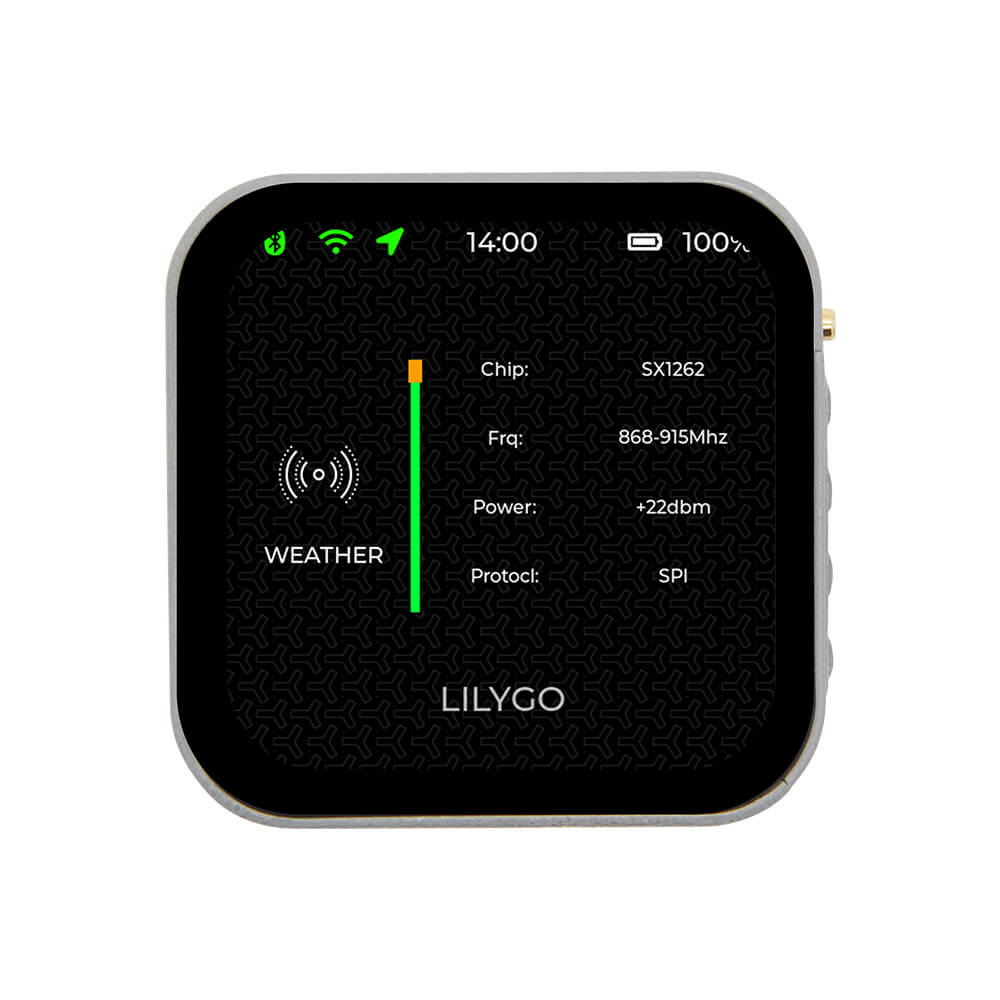

Display 2.16 inch AMOLED + Capacitive Touch, Driver: CO5300, Resolution: 480 x 480, Touch Chip: CST9220
LoRa Transceiver Low Power SX1262
Support Bands 400~520MHz, 830~945MHz
IMU Sensor Low-power Self-learning AI smart sensor, Chip: BHI260AP, 6-axis (Accelerometer + Gyroscope)
Dimensions 46 x 46 x 16mm
USB Supply 5V 500mA


Tech Support

ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

🔎Wiki document
To obtain more detailed documentation.

💡LILYGO-Spark
Discover more creative IoT projects with our Spark series.
