LILYGO® Shipping to worldwide

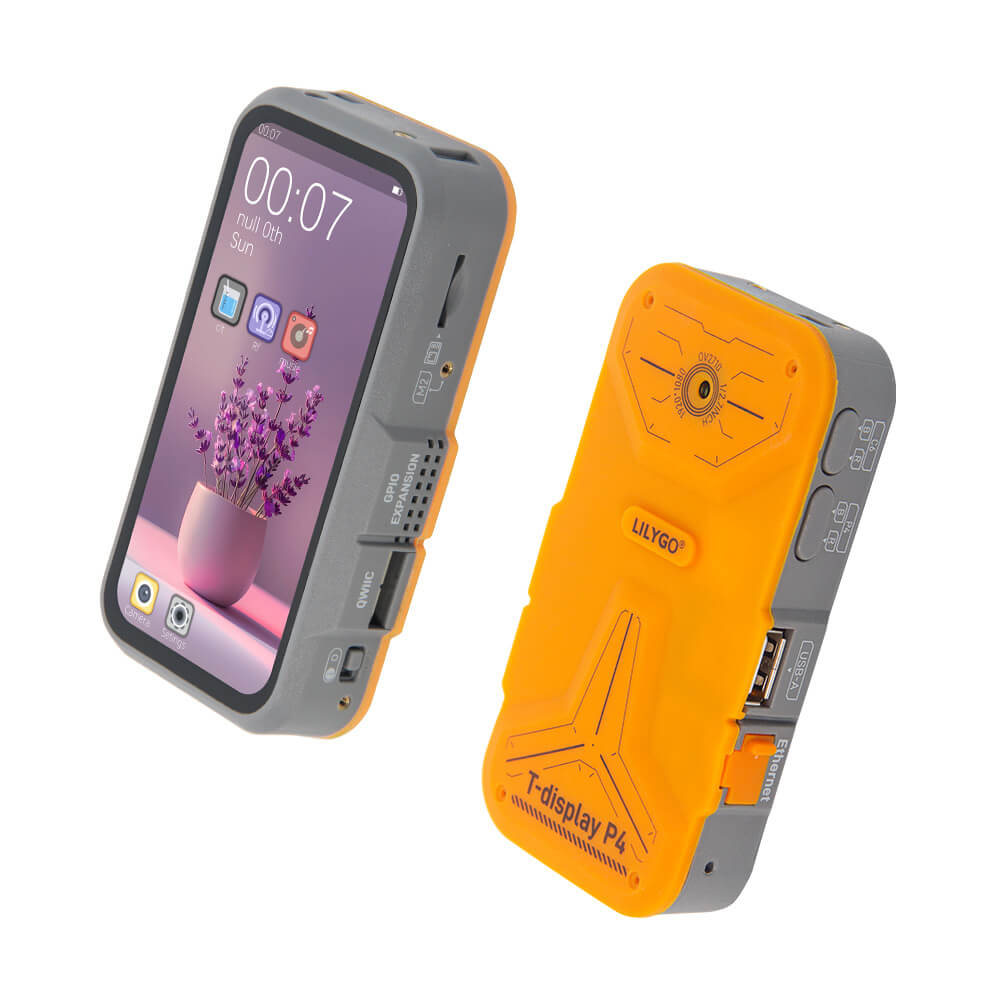

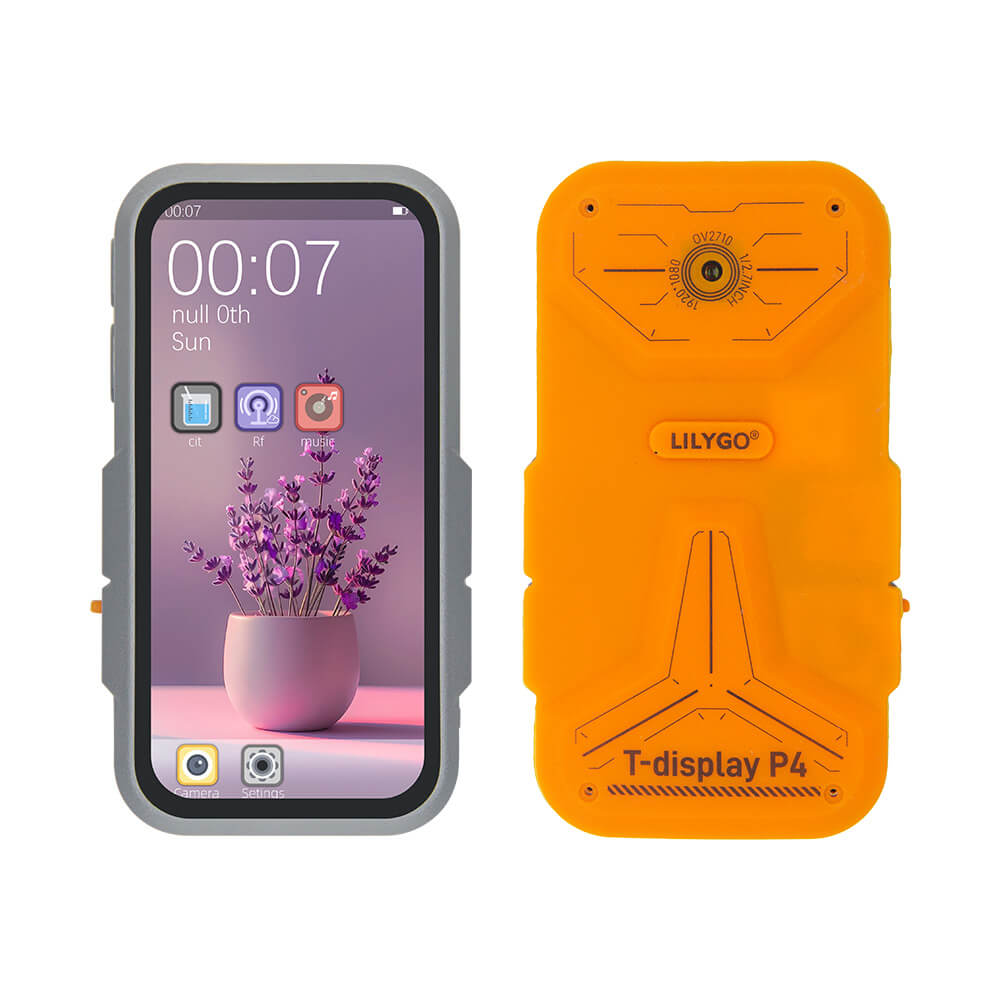

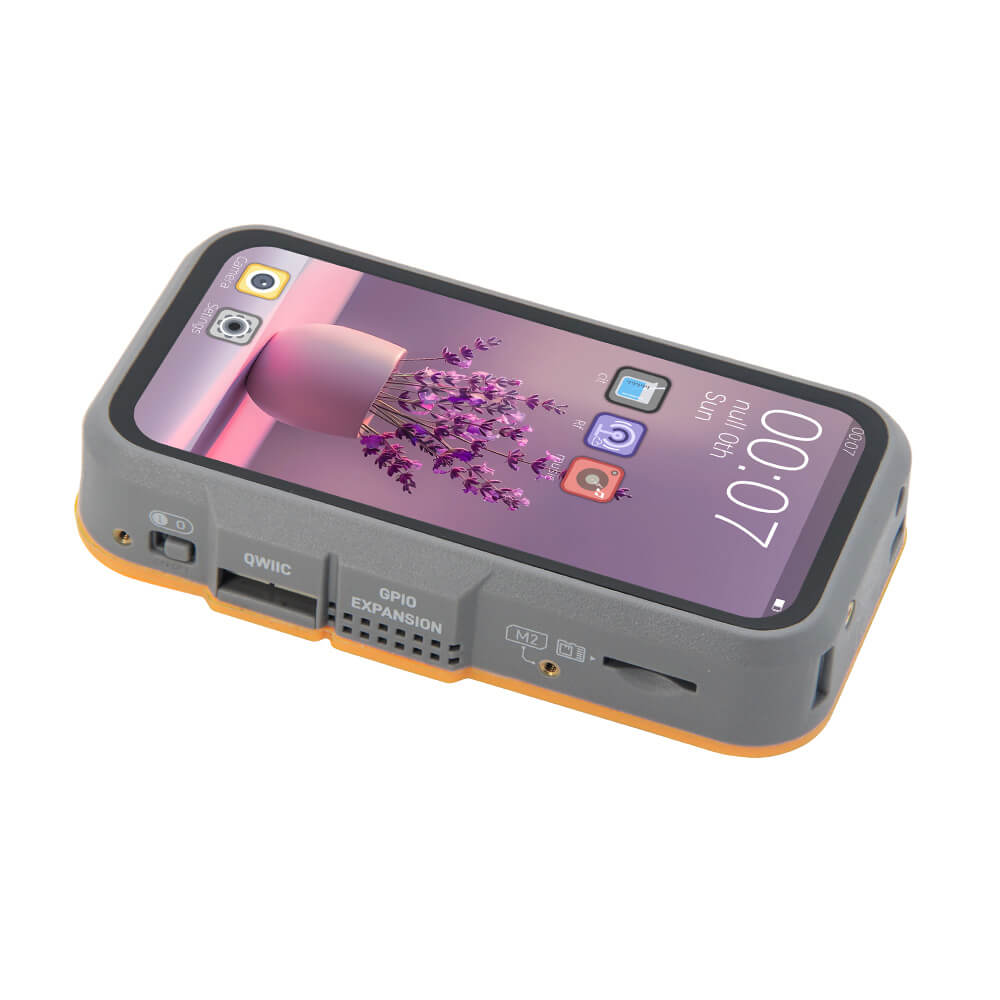

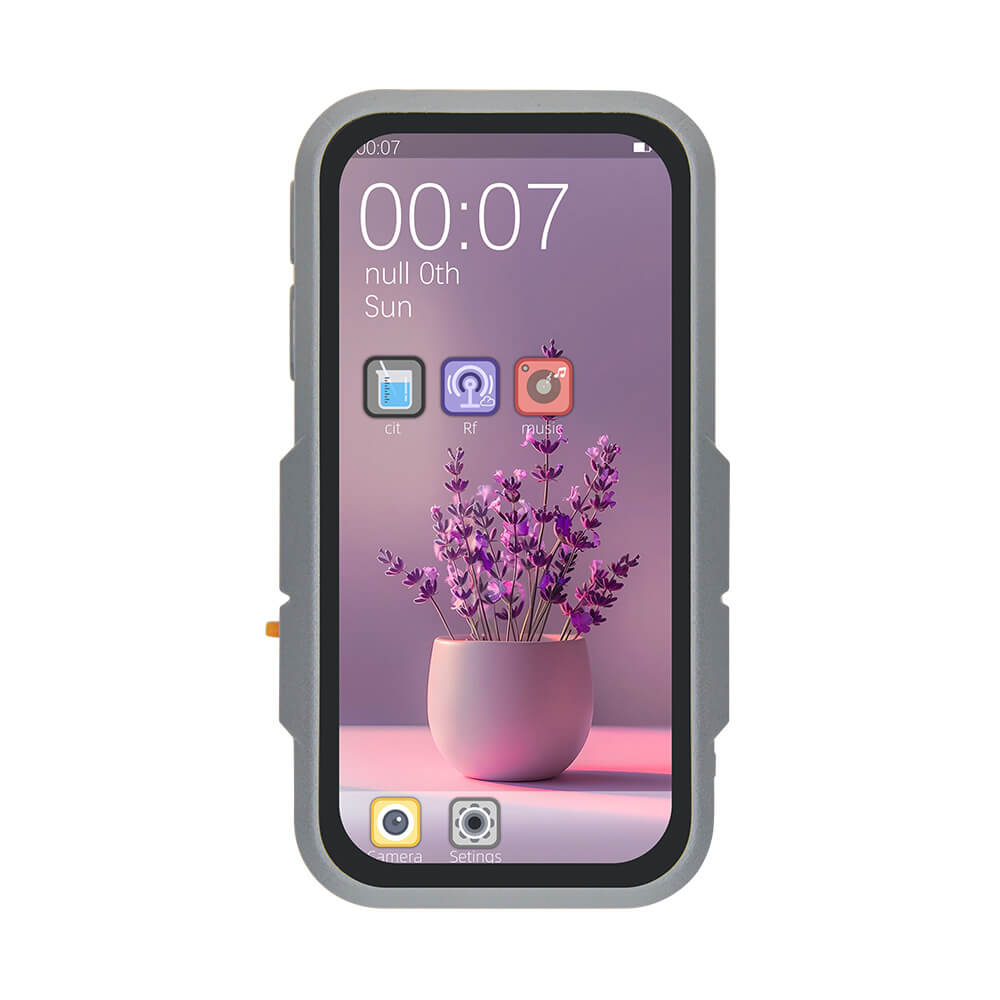

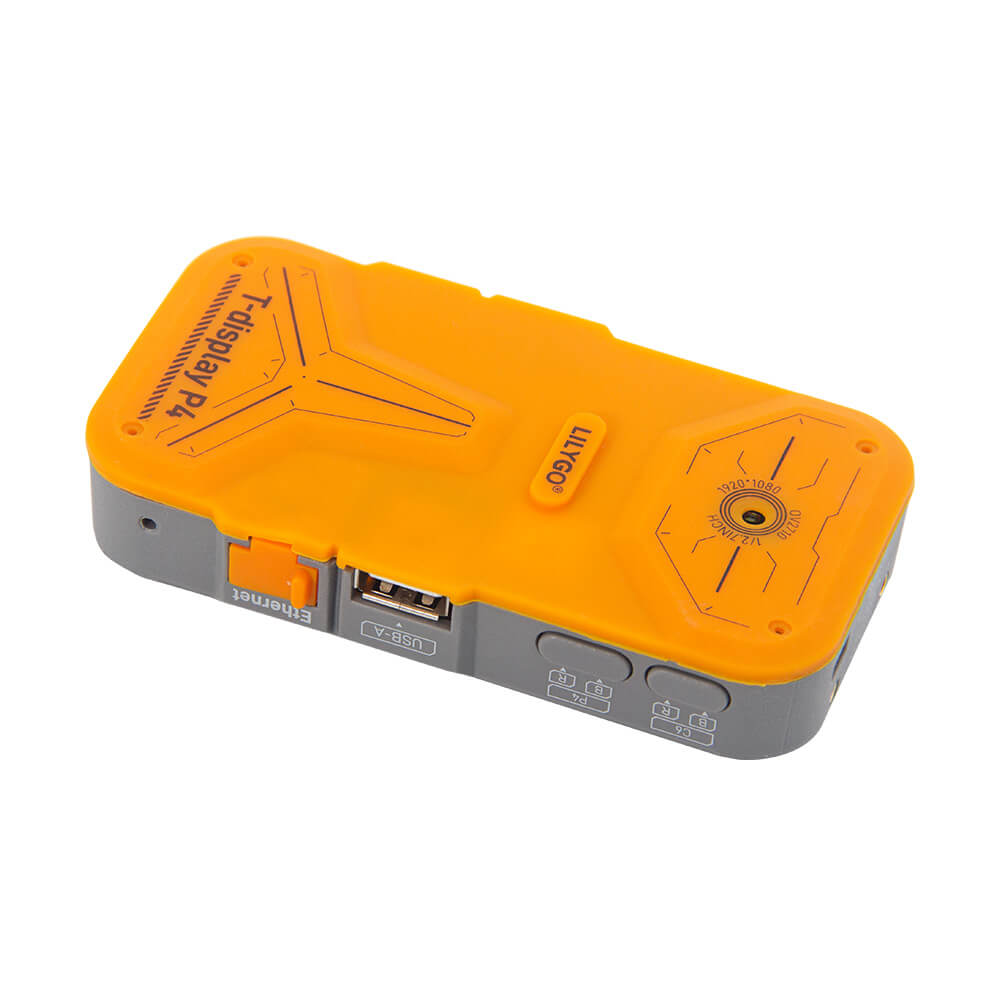

T-Display P4

T-Display P4

$119.30
$119.30
Sale Sold out

Payment Method

Accepted payment methods

About Shipping

Methods & Delivery Time

  • DHL 7-10 business days
  • FedEx 7-10 business days
  • Standard Express 10-25 business days
  • Overseas Warehouse* 7-15 business days


*Available from: Germany, USA, Canada

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

About Tax

We only charge the product cost and shipping cost.

1. For Standard Express Order: You may not need to deal with customs clearance, just need to pay attention to the track of the parcel, but this is not absolute, if your parcel is inspected by the customs, then you need to assist in dealing with customs clearance.

2. For DHL/ FedEx Order: You need to deal with the relevant customs clearance matters, as well as pay the tariff, the specific amount of tariff please pay attention to the policy of your country.

----------------------

The above tariffs are for reference only, please pay attention to your country's tax policy for more detailed instructions, if you need our help or have questions please feel free to contact us.

Based on the ESP32-P4 platform, available in AMOLED (rear camera) and TFT punch-hole display (under-screen camera) versions.

Specifications

MCU1 ESP32-P4,RISC-V Dual-core 360Mhz + Single 40Mhz
Features

Powerfulimage and Voice processing

JPEG Codec,ISP, PPA, H264 Encoder, MIPI CSI, MIPI DSI
Flash 16MB
PSRAM 32MB
Platform ESP-IDF,VS code

MCU2  ESP32-C6
Features 2.4 GHz Wi-Fi6(802.11ax), Bluetooth 5(LE)
Onboard function Capacitive touch screen+TFT/AMOLED optional
l2S Speaker & Microphone & Motor+ RTC+ Ethernet
Expandablel/0 supports external Keyboard Board
LoRa Module SX1262
2MP MIPI Camera 0V2710/ 1080p@30 fps,720p@60 fps
Charge Management LGs4056H
I2C Battery Gauge BQ27220
12C GPl0 Expansion lC XL9535/ 24-pin CMOSIc 16-bit GPIO
9-AxiS MEMS IMU lCM20948/ MotionTracking + DMP
Size 63 x109x22mm
USB Charging 5V, 500mA

Tech Support

ℹ️Product information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community and post a description of the problem, and our engineers will help you directly.

What's In The Box

4.1 Inch AMOLED [H753] Version

4.05 Inch TFT [H753-01] Version

View full details

  • Who can use

    It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]
