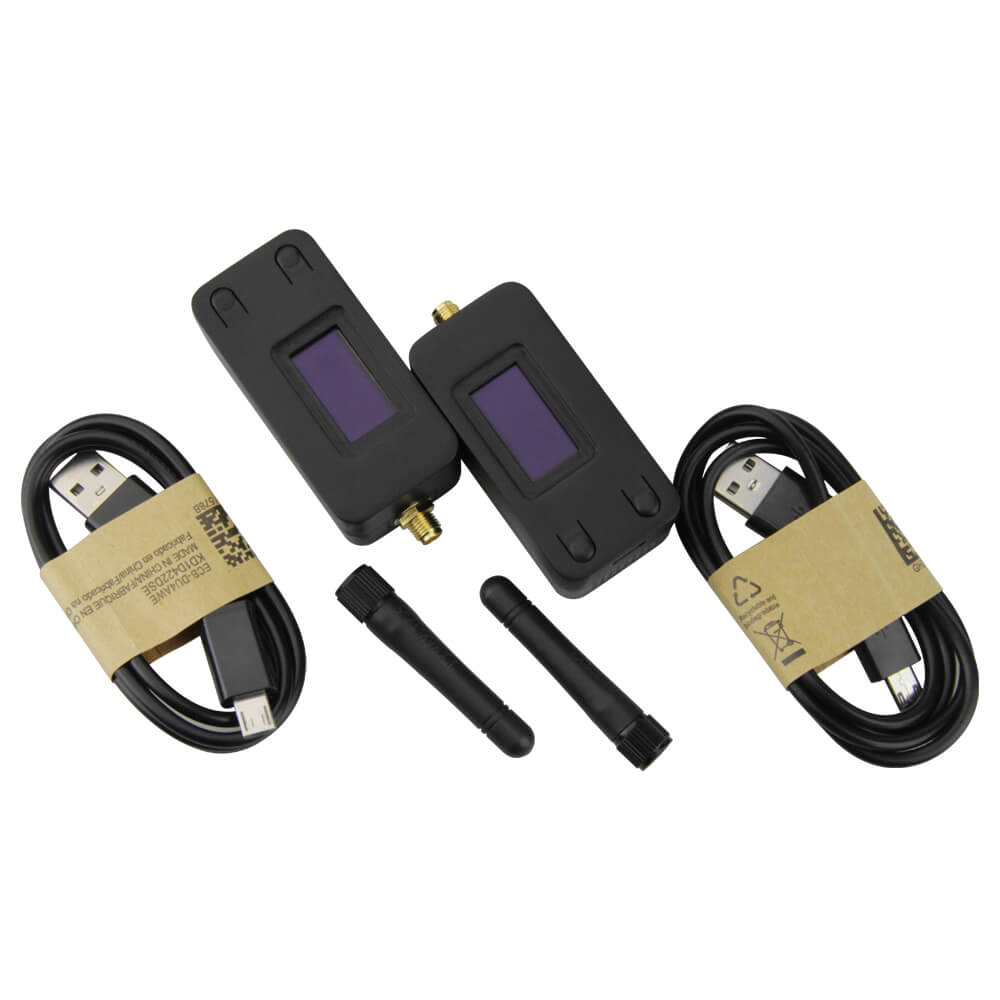

LoRa32 V1.0 Kit/ Sold Out
LoRa32 V1.0 Kit/ Sold Out
Couldn't load pickup availability
About Shipping
About Shipping
Methods & Delivery Time
- Standard Express: 25-30 Days
- YunTu Express : 10-20 Days
(Company name can't be used consignee) - DHL: 10-17 Days
- FedEx: 10-17 Days
Please note that all delivery times are estimated for reference only.
Check More Info: Shipping Policy
About Tax
About Tax
We only charge you for the cost of the product and shipping, no taxes are included.
LoRa V1.0 Introduce
-
This product is an LoRa [SX1276 chip] Module based on ESP32 with 0.96 Inch OLED . As a LoRa remote modem, 868-915MHz frequency, high sensitivity and reliability, and long transmission distance.
-
Supports for Arduino development environment perfectly can be used for program checking and the development is easy and fast.
- Support for Sniffer software protocol analysis, Station, SoftAP, and Wi-Fi Direct modes
If you don't want the Kit, check the LoRa32 V1.0
-
The 868/915MHz antenna needs to be in connection with the IPEX interface (if the antenna is not connected, the signal will be weakened)
-
When using, pay attention to "+" and "-" of the battery, including built-in battery.
-
With IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor to this pin!)
- Please use our matching USB cable [micro interface is a little longer than the ordinary version]
- It is recommended to purchase two-piece for testing in order to transmit and receive data facilitatly.
Technology Support [Github]
If you need technical support please check the link to find more details.
Specification
| MCU | ESP32 |
| LoRa Chip | SX1276 |
| Flash | 4M |
| USB to TTL chip | CH910X |
| Antenna |
Onboard WiFi 3D antenna LoRa antenna |
| OLED |
0.96 Inch SSD1306 OLED 128*64 |
| Operating voltage | 3.3V to 7V |
| Operating temperature range | -40 ° C to + 90 ° C |
| Data rates | 150 Mbps @ 11n HT40, 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b |
| Transmit power | 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n Receiver sensitivity up to -98 dBm |
| Red light | Power indicator |
| Blue light | IO25 programmable control |

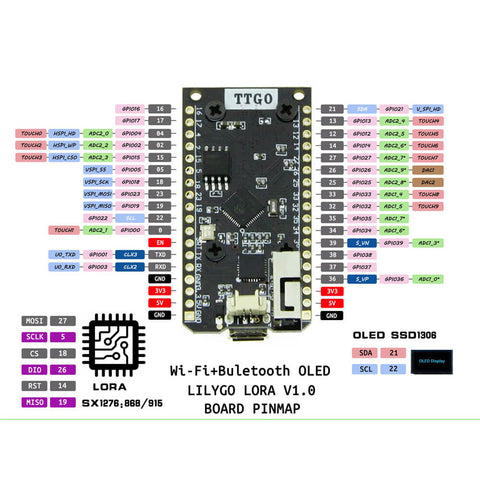

1. Pin Diagram
