T4 S3

T4 S3

ESP32 S3 touch screen 2.41 inch

$58.99
$58.99
Sale Sold out

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

For countries other than USA, we only charge [product cost + shipping cost], no tax.

Orders from US customers are adjusted according to different shipping channels:

1. For Standard Express Order: We charge【product cost + shipping cost + part of tax】this rate is only applicable to shipment from China warehouse.
(Since the tax is charged according to the declared amount, we have filtered the most suitable solution, and it is most likely that this shipping way does not need you to deal with the customs duty, but it is not absolute)

2. For DHL Order: We charge【product cost + shipping cost】no any tax, tax need you to pay attention to the local policy changes, when the parcel arrives at the US customs, deal with the tax matters by yourself.

----------

The above content is only for charging reference on lilygo.cc website, the specific tax situation still depends on the local country's policy requirements, once the parcel is sent out, you need to keep an eye on its status, and to assist in handling it as needed when it arrives at the local customs, we will also follow up during the process, if you have any

Specifications

MCU ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Arduino, PlatformIO-IDE, Micropython
Flash 16MB
PSRAM 8MB
Language C, C++, Lua
Onboard functions Boot Button + Reset + Micro SD
 2.41-inch SPI RGB AMOLED
Active Area 36.2*48.96mm
Brightness 800cd/m
Resolution 450(W) x RGB x 600(H)
Interface QSPI

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T4 S3

[If you need extension cable, click here]


Size

Pin Diagram



What's In The Box

With Shell Soldered Pin

With Shell Soldered Female Pin



Basic

Only Sheild

View full details

  • Who can use

    It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]

  • Accelerated processing

    International orders please make sure your address is in English
    For Hong Kong, Macau and Taiwan orders, please note your personal ID.

  • Got a question

    Click on the bubble in the bottom right corner where some frequently asked questions are answered, or just drop us a line.

Customer Reviews

Based on 19 reviews
74%
(14)
11%
(2)
5%
(1)
0%
(0)
11%
(2)
@
@Dobodu
A very nice micropython compatible Amoled display

https://www.youtube.com/watch?v=m3pqW5jGypQ&t=424s

R
Ricardo Bartolomeu
Great screen and form factor

The only thing preventing a 5 star rating is the blinking led that I cannot disable unless I use a battery.

M
Maxx
T4 S3

Very good product

g
greg
First time with esp32, ended up great for my application

This is my first time using an esp32 let alone a display attached to one and it's been great. I recommend using visual studio with platformio for coding, and eez studio for desiging a GUI in LVGL (it's free unlike squareline studio and more features imo).

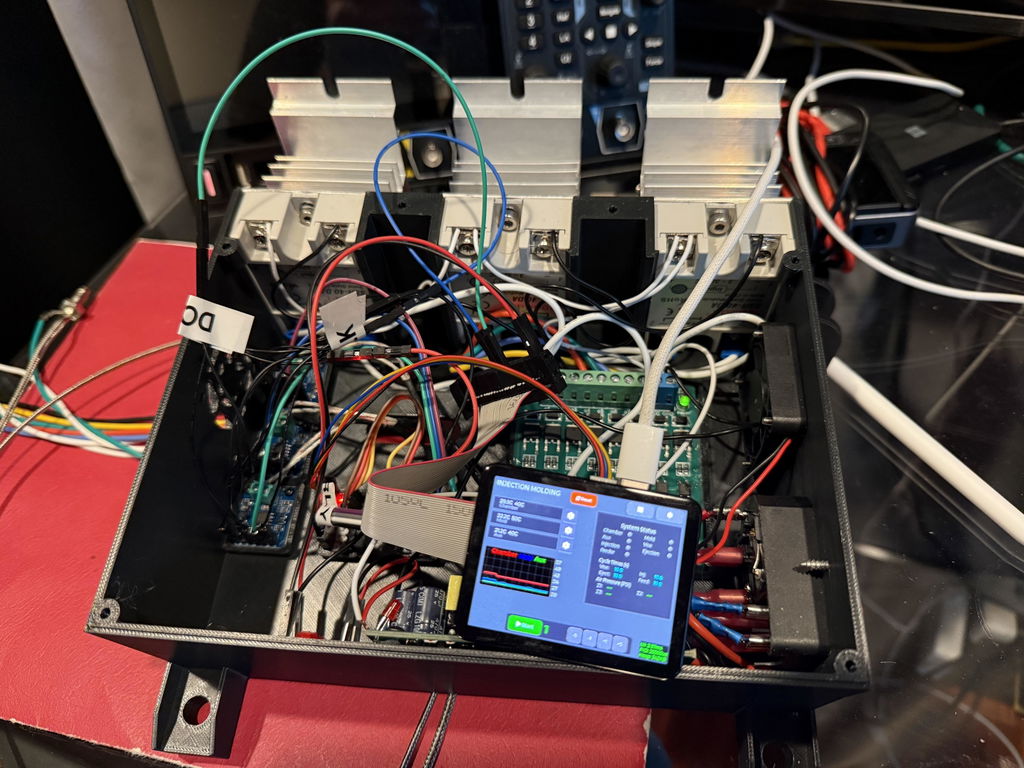

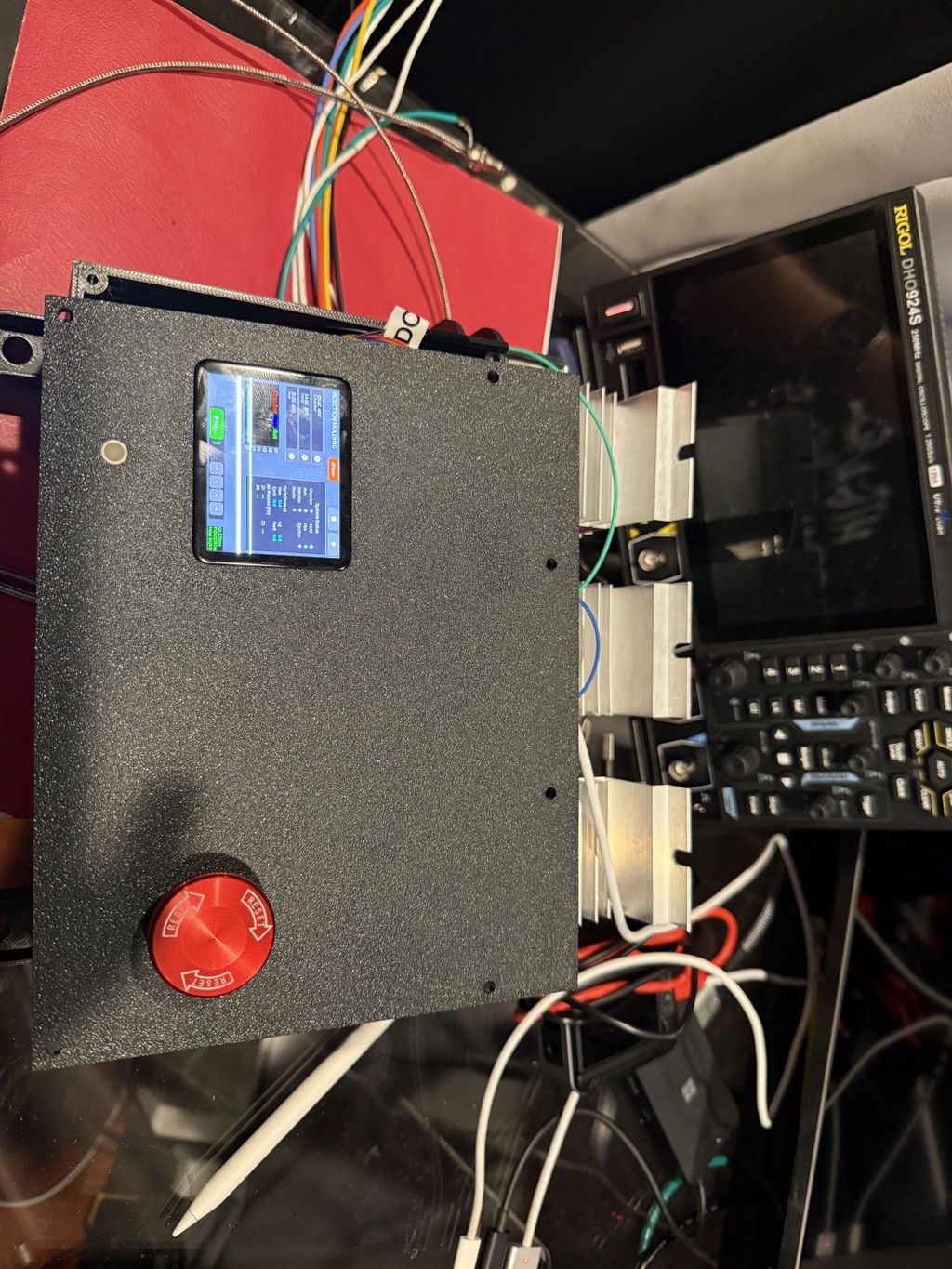

I have been able to create a GUI interface to control a few websocket servers and it looks great, smooth, high res and bright enough outdoors (haven't tried on a super sunny day but I would compare it roughly to an iphone screen at normal viewing distances).
I believe this is one of very few amoled (or OLED) touch screens in this size category which is why I bought it as it fit my requirements of being an amoled touchscreen of this size.
The only thing I could possibly say is if it's at full brightness there's a little bit of image retention (for example if you have a bright color on a dark background then switch to a dark screen then you'll see a difference in brightness where the bright color was for a minute or so but it's not noticeable from normal viewing distances and disappears after a minute so it hasn't been a problem at all for me).
Processor seems strong enough to handle a few websockets and a fairly intricate GUI that i created as long as you use freertos tasks one for gui and others to keep it operating smoothly using both cores then it remains responsive always.

Overall I'm really happy with it and looking forward to see what improvements they might bring in a new version

M
Matej Koprivsek

Great design
