T-ETH ELite

T-ETH ELite

ESP32-S3+Ethernet POE as the mainboard

2 total reviews

Regular price $23.99
Regular price Sale price $23.99
Sale Sold out

About Shipping

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

About Tax

For countries other than USA, we only charge [product cost + shipping cost], no tax.

Orders from US customers are adjusted according to different shipping channels:

1. For Standard Express Order: We charge【product cost + shipping cost + part of tax】this rate is only applicable to shipment from China warehouse.
(Since the tax is charged according to the declared amount, we have filtered the most suitable solution, and it is most likely that this shipping way does not need you to deal with the customs duty, but it is not absolute)

2. For DHL Order: We charge【product cost + shipping cost】no any tax, tax need you to pay attention to the local policy changes, when the parcel arrives at the US customs, deal with the tax matters by yourself.

----------

The above content is only for charging reference on lilygo.cc website, the specific tax situation still depends on the local country's policy requirements, once the parcel is sent out, you need to keep an eye on its status, and to assist in handling it as needed when it arrives at the local customs, we will also follow up during the process, if you have any

It can be used as LoraWan gateway mode, and the Lora+GPS expansion board can be realized by stacking the Lora Mesh mode.

Specifications

MCU  ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Arduino, PlatformlO-IDE, ESP-IDF
Flash 16MB
PSRAM 8MB
Size 50 X 67mm
USB Charging 5V 500mA


W5500 Ethernet Module

Supports Protocols  TCP, UDP, ICMP, IPv4, ARP, PPPoE

Sample Code For Reference [Github]

If you need technical support please check the link to find more details.

T-ETH ELITE

--See how it works😎--

Combination For Reference

  1. T-ETH-ELITE
  2. Gateway Shield
  3. LTE Sheild

  1. T-ETH-ELITE
  2. Lora Shield
  1. T-ETH-ELITE
  2. LTE Sheild
  1. T-ETH-ELITE
  2. Gateway Shield

T-SX1302 not included



Size


Pin Diagram

View full details
  • Who can use

    It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]

  • Accelerated processing

    International orders please make sure your address is in English
    For Hong Kong, Macau and Taiwan orders, please note your personal ID.

  • Got a question

    Click on the bubble in the bottom right corner where some frequently asked questions are answered, or just drop us a line.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anton Tanasenko

T-ETH ELite

D
Denny Moritz
My new go-to-board!

It has become my go-to-board for most projects where size has not been a crucial issue. It comes with ETH (W5500), POE, USB-C, soldered-on pins and an S3 chip and works rock solid with ESPHome (I have 3 of those running 24/7 for months now wired via POE).

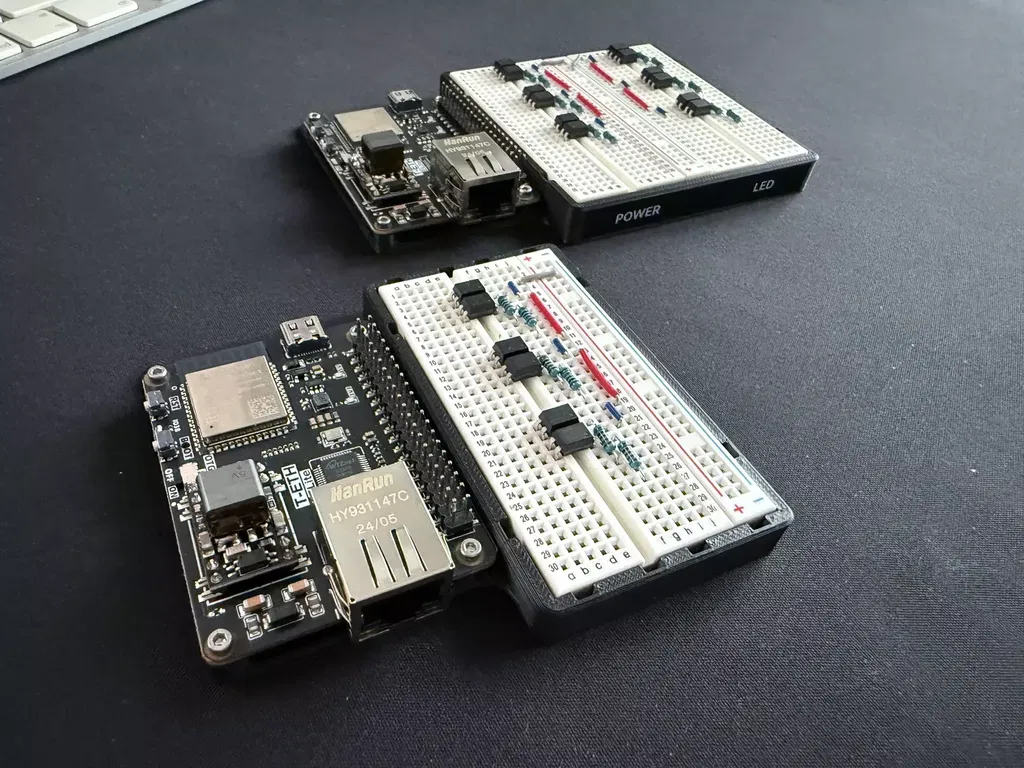

I also made a case for it and a prototyping bench:
https://makerworld.com/en/models/792350
https://makerworld.com/en/models/693270

So cool!
