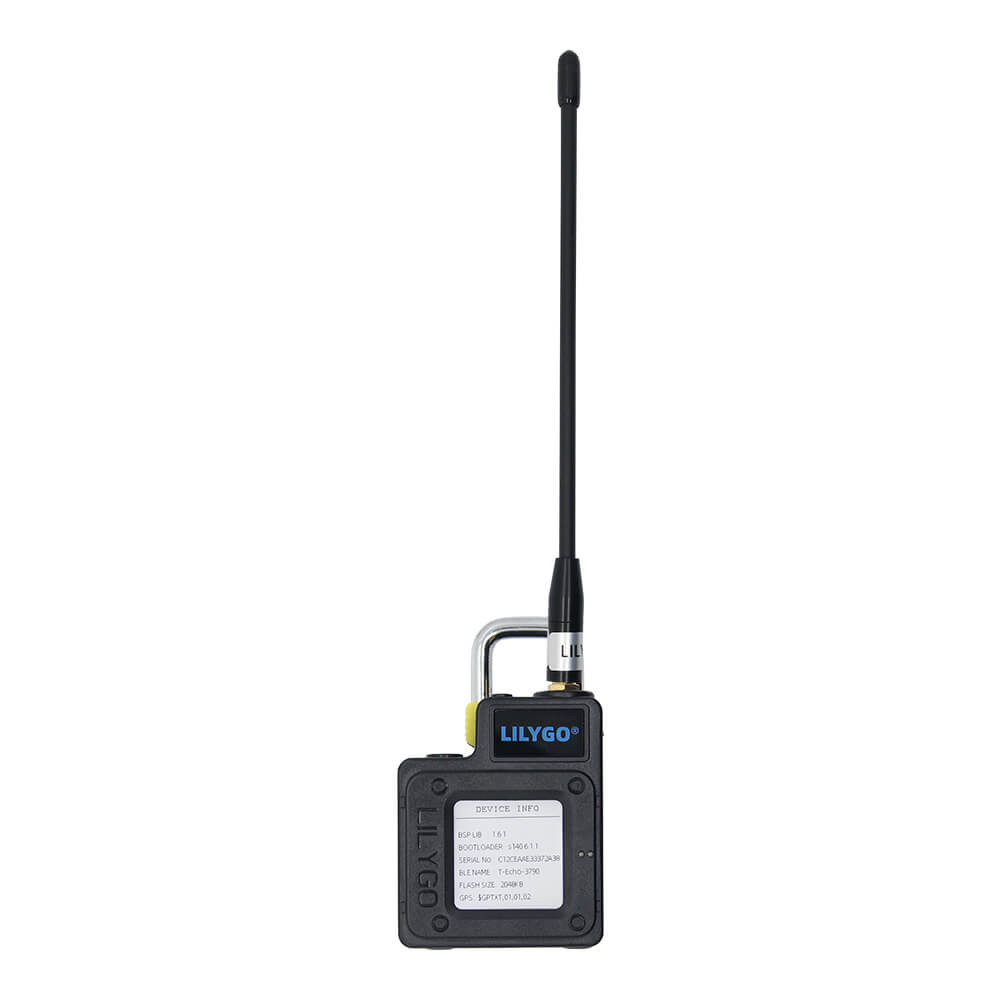

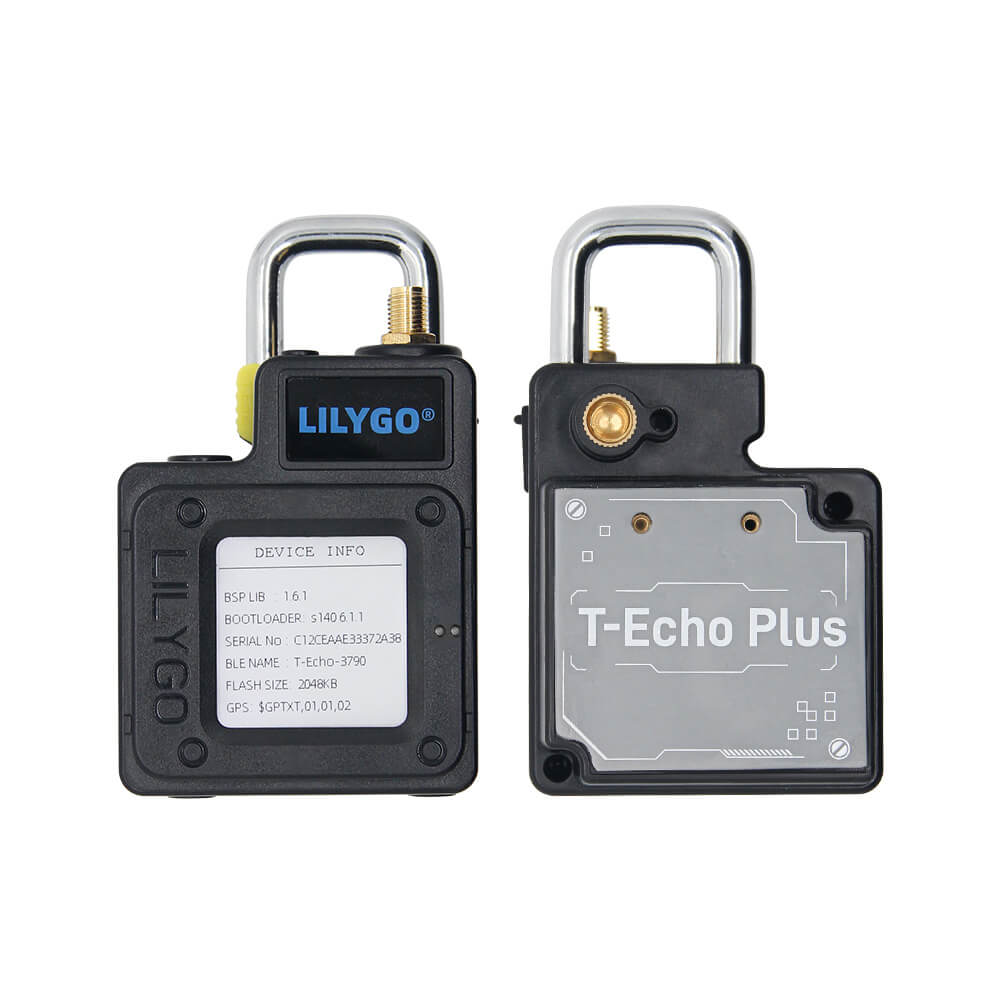

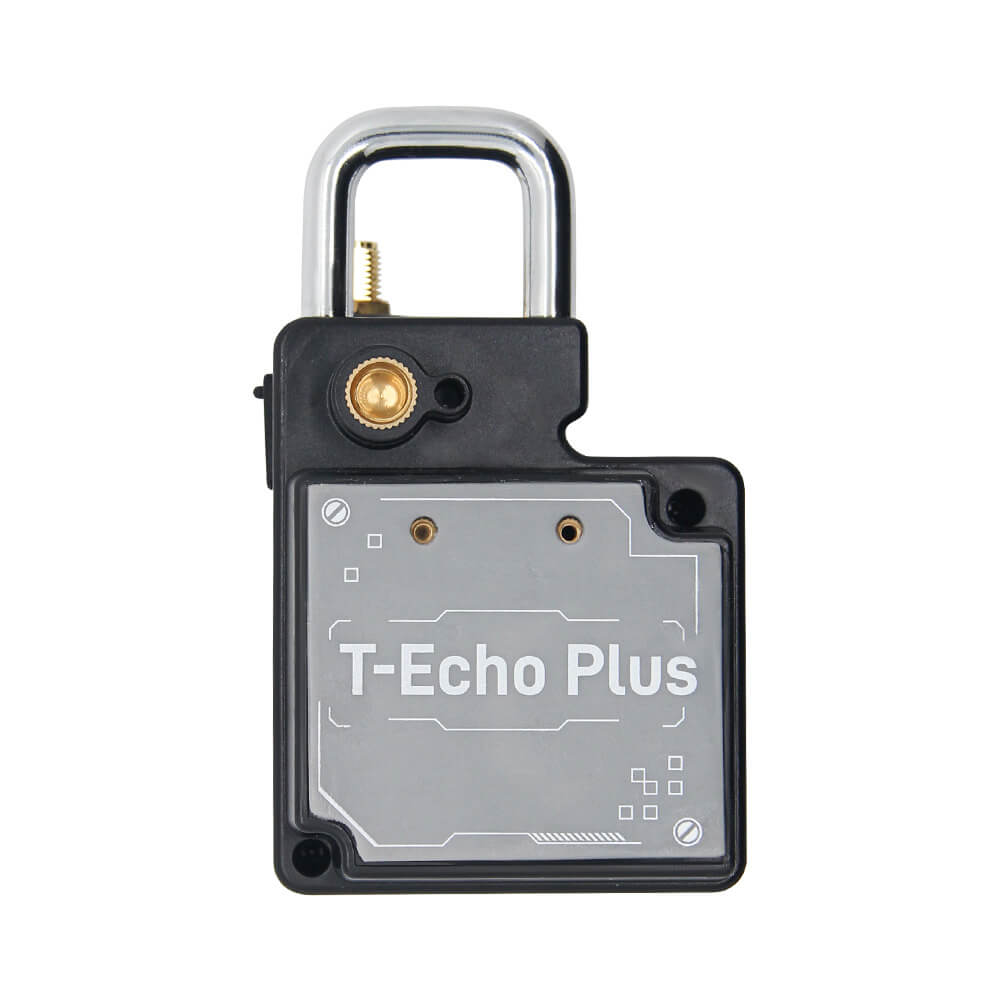

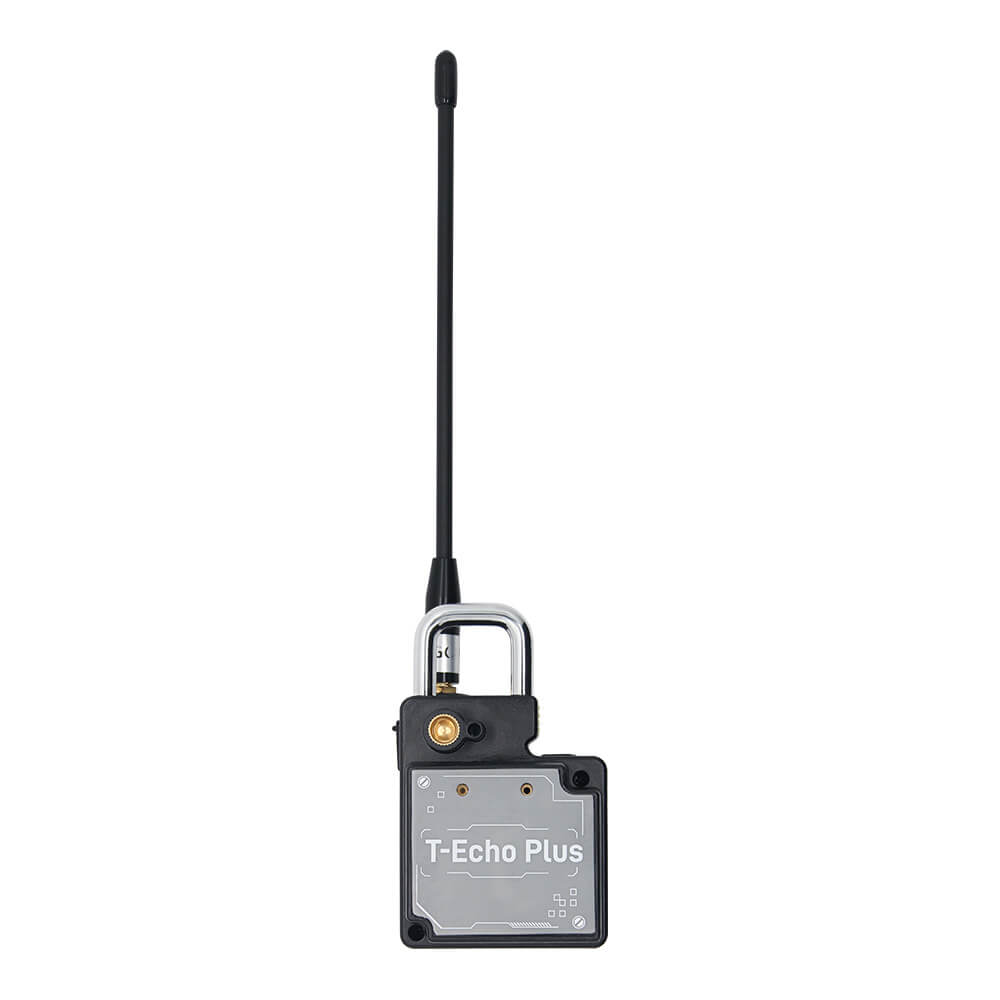

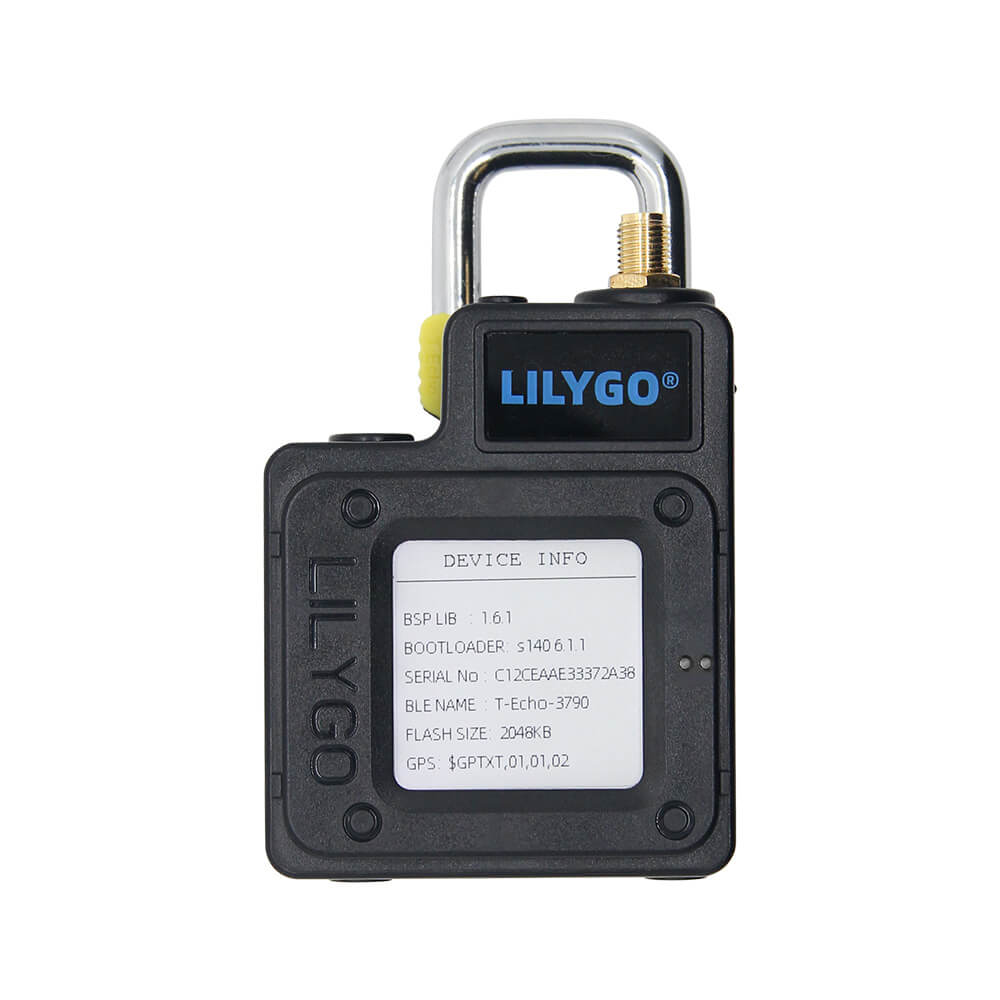

T-Echo Plus

T-Echo Plus

$64.22
$64.22
Sale Sold out
Firmware
Frequency
Color

About Shipping

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

About Tax

We only charge the product cost and shipping cost.

1. For Standard Express Order: You may not need to deal with customs clearance, just need to pay attention to the track of the parcel, but this is not absolute, if your parcel is inspected by the customs, then you need to assist in dealing with customs clearance.

2. For DHL/ FedEx Order: You need to deal with the relevant customs clearance matters, as well as pay the tariff, the specific amount of tariff please pay attention to the policy of your country.

----------------------

The above tariffs are for reference only, please pay attention to your country's tax policy for more detailed instructions, if you need our help or have questions please feel free to contact us.

Key Feature Upgrades

  • ✅BHI260AP IMU — Improved motion sensing
  • ✅Vibration Motor — Tactile feedback
  • ✅2400mAh Battery — Extended usage
  • ✅Buzzer — Audible alerts

Structural Improvements

  1. 1/4-inch Mount Interface
  2. Climbing Finger Loop

Specification

MCU NRF52840
FLASH 2MB
RAM 2MB
Bus Interfaces UART, SPI, TWI, PDM, 12S, QSPI
Wireless Connectivity Bluetooth 5, Thread,
Bluetooth Mesh, ANT, 802.15.4, Zigbee
With/ Without BME280 temperature pressure sensor
SX1262 LoRa Transceiver Long Range, Low Power
Global frequency coverage 433, 868, 915Mhz
Battry Capacity 2400mAh

1.54-inch SPI E-Paper Display

Grey level 2
Resolution 200x200
 Full refresh time 2S

L76K Multi-System Positioning GNSS module

Support System GPS, GLONASS, BeiDou, QZSS

Tech Support



ℹ️Firmware

1. LILYGO

Check out GitHub repository for sample code and more detailed information about this board.

 💻LILYGO GitHub Community
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

What's In The Box

View full details

  • Who can use

    It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]
