LILYGO® TTGO Meshtastic T-Echo LoRa SX1262 Wireless Module 433/868/915MHz NRF52840 1.54 E-Paper GPS RTC NFC BME280 for Arduino

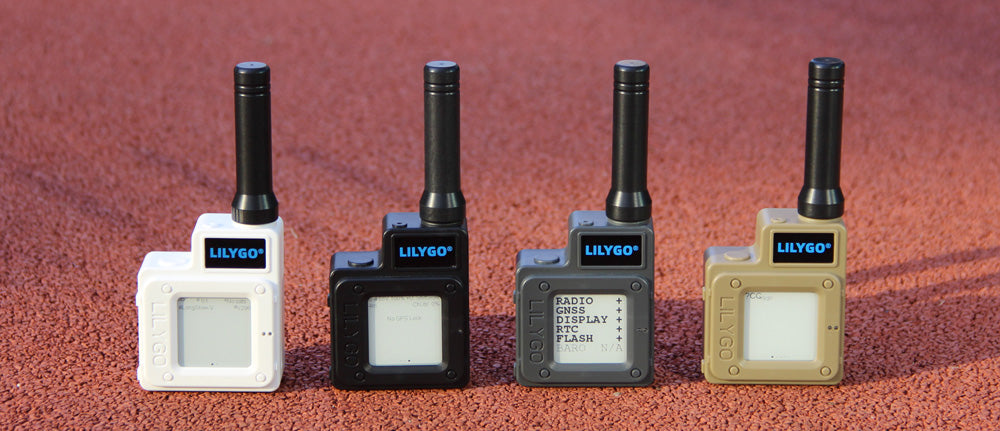

Pick a different color of shell for your T-Echo：T-Echo shell

Specification

MCU	NRF52840
FLASH	2MB
RAM	2MB
Bus Interfaces	UART, SPI, TWI, PDM, 12S, QSPI
Wireless Connectivity	Bluetooth 5, Thread, Bluetooth Mesh, ANT, 802.15.4, Zigbee With/Without BME280 temperature pressure sensor
SX1262 LoRa Transceiver	Long Range, Low Power Global frequency coverage 433, 868, 915Mhz
Enclosure material	ABS
Version	Normal version / BME280 version
Battry Capacity	850mAh

1.54-inch SPI E-Paper Display

Grey level	2
Resolution	200x200
Full refresh time	2S

L76K Multi-System Positioning GNSS module

Support System	GPS, GLONASS, BeiDou, QZSS
Support Function	LNA, SAW Filter, AGNSS, 1PPS Improved receiving and anti-interference attributes

Look at what the antenna does.

LILYGO® TTGO Meshtastic T-Echo Introduce：

LILYGO®TTGO T-Echo is a version evolved from LILYGO T-BEAM. At the beginning of the design, more consideration was to adapting to Meshtastic.
so Bluetooth and low-power consumption were considered when designing, and NRF52840 Advanced Bluetooth 5 was selected thread and Zigbee multiprotocol SoC.
The LORA function continues T-BEAM's LILYGO SX1262 version functional module.

T-SX1262 wireless transceiver module, using Semtech SX1262 LORA RF transceiver chip design, working in the 868/915MHz ISM frequency band, integrated high stability TCXO 32MHz crystal oscillator, half-duplex transceiver module, power up to +22dBm, receiving sensitivity -139dBm. Automatic transceiver Switching, internal transmission, and reception channel isolation, advanced LORA spread spectrum communication technology, strong anti-interference, and privacy can realize long-distance wireless data

Battery capacity: 850mAh

Technology Support [Github]

If you need technical support please check the link to find more details.

Basic Example:

https://github.com/Xinyuan-LilyGO/LilyGO-T-Echo

Meshtastic:

https://github.com/meshtastic/Meshtastic-device/releases

Application scenarios:

- DIY creation - LoRa networking - GPS positioning - IOT terminal control - Stem education product

Features of the module:

Multi-satellite positioning system L76K is a support multi-satellite system (GPS, BeiDou, GLONASS, QZSS), multi-system joint positioning, and single system independent positioning, support AGNSS function, built-in low noise amplifier, and surface filter, can provide users GNSS module with fast, accurate and high-performance positioning experience.

Compared with a single GPS system, the high-precision positioning multi-satellite system greatly increases the number of visible and usable satellites, improves positioning accuracy, and can achieve stable high-precision positioning even in complex urban environments.

It supports the AGNSS function, which can greatly Reduce the time for the first positioning, built-in low-noise amplifier, can achieve high sensitivity, high-precision positioning, and fast signal capture and tracking, even under weak signal conditions can also ensure a good positioning performance, built-in surface acoustic filter, can greatly The anti-interference ability of the module is enhanced, and the active antenna detection circuit and protection circuit are integrated inside to protect the module and the active antenna from damage.

The display uses a 1.54-inch electronic paper display with front light, 200x200 resolution 1.54 front LED E-paper, and it can be used in a dark environment.

1. Size

2. Pin Diagram

3. Appearance Details

T-Echo 433/868/915MHz Normal Options

T-Echo

1 X T-ECHO Motherboard
1 X GPS Antenna
1 X LORA 915/868/433MHz Antenna
1 X NFC Antenna
1 X Touch Cable
1 X Jst 2pin1.25mm Battery Cable
1 X 850mA Capacity Battery
1 X ABS Material Enclosure
1 X Type-C USB Cable

(The color depends on the version you choose)

T-Echo 433/868/915MHz BME280 Options

T-Echo

1 X T-ECHO Motherboard [BME280]
1 X GPS Antenna
1 X LORA 915/868/433MHz Antenna
1 X NFC Antenna
1 X Touch Cable
1 X Jst 2pin1.25mm Battery Cable
1 X 850mA Capacity Battery
1 X ABS Material Enclosure
1 X Type C USB Cable

(The color depends on the version you choose)
