T-Embed CC1101

PN532 NFC/RFID I2C transceiver module

35 total reviews

$54.67

Sale Sold out

Quantity

About Shipping

Methods & Delivery Time

Standard Express: 25-30 Days
YunTu Express : 10-20 Days
(Company name can't be used consignee)
DHL: 10-17 Days
FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

About Tax

We only charge you for the cost of the product and shipping, no taxes are included.

We do not recommend replacing the case, there is a high risk of damaging the unit and affecting the IR function.

Built-in Sub-GHz module based on a CC1101 transceiver and a radio antenna (the maximum range is 50 meters).

RFID: 13.56MHz (HF)

Both the CC1101 chip and the antenna are designed to operate at frequencies in the 300-348 MHz, 387-464 MHz, and 779-928 MHz bands.

Specifications

MCU	ESP32-S3 Dual-core LX7 microprocessor
Flash	16MB
Programming Platform	Arduino-ide、 ESP-IDF
RSRAM	8MB
Onboard functions	Reset + Boot Button , IR Transmit & Receive
Bat voltage detection	IO04
Wireless	Wi-Fi 802.11 b/g/n，BLE 5

1.9 inch ST7789V IPS color TFT LCD

Interface	SPI
Drive Chip	ST7789V
Resolution	170(H)RGBx 320(V)

--- Tech Support---

ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

🧑‍💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

What's In The Box

View full details

Who can use
It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]
Accelerated processing
International orders please make sure your address is in English
For Hong Kong, Macau and Taiwan orders, please note your personal ID.
Got a question
Click on the bubble in the bottom right corner where some frequently asked questions are answered, or just drop us a line.

Rfid doesn't work

Hi, I sent you a message. Rfid does not work, even Hen I wait a while.

Hi, yes we received your message on 3/7, we replied to you yesterday afternoon and attached a way to try to solve the problem, please let me know if you have seen it, we will send you another follow up email later, please check it out.
Thank you for your patience and cooperation.

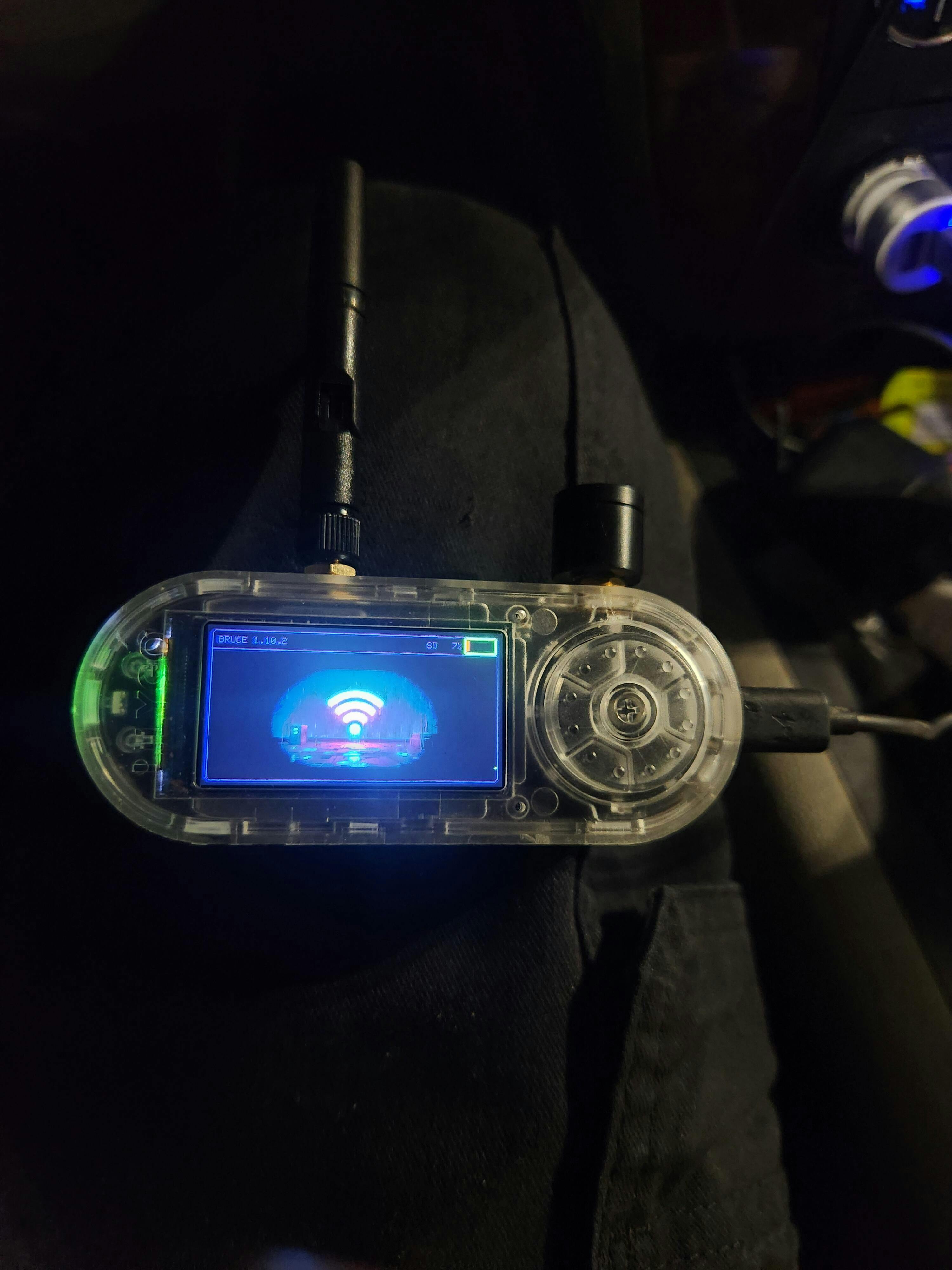

T-Embed CC1101

Almost perfect

I love the T-Embed CC1101. It lacks a GPIO port in the style of Flipper Zero to make it perfect.

The quality of the T-Embed CC1101 is excellent, and the box for transporting it safely is a thoughtful little detail from Lilygo.

The great thing about Liligo is the access to 3D models to make it even easier to create extensions. I've already designed one to accommodate a larger RFID antenna and 2 antennas.
