T-Display S3 AMOLED (DS)

T-Display S3 AMOLED (DS)

T-Display S3 AMOLED series in different size version

2 total reviews

Regular price $27.86
Regular price Sale price $27.86
Sale Sold out

About Shipping

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

About Tax

We only charge you for the cost of the product and shipping, no taxes are included.

T-Display S3 AMOLED series in different size version

——————————————

Specifications [Common part]

MCU ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Arduino, PlatformlO-IDE, ESP-IDF
Flash 16MB
PSRAM 8MB
Bat Voltage Detection  IO04

Specifications [Different part]

1.75-inch SH8601 AMOLED

Resolution 466 x 466 px
Bus Interface QSPI
Driver IC SH8601
Screen type AMOLED
Compatibility library  Arduino_ GFX



-------------------------------

1.64-inch ICNA3311 AMOLED

Resolution 280 x 456 px
Bus Interface QSPI
Driver IC ICNA3311(C05300)
Screen type AMOLED
Compatibility library  Arduino_ GFX

-------------------------------
1.43-inch SH8601 AMOLED

Resolution 466 x 466 px
Bus Interface QSPI
Driver IC SH8601
Screen type AMOLED
Compatibility library Arduino_ GFX

Tech Support

ℹ️Product information

A. 1.64 Inch
B.1.43 Inch & 1.75Ich
Check out our GitHub repository for sample code and more detailed information about this board.

 🧑‍💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

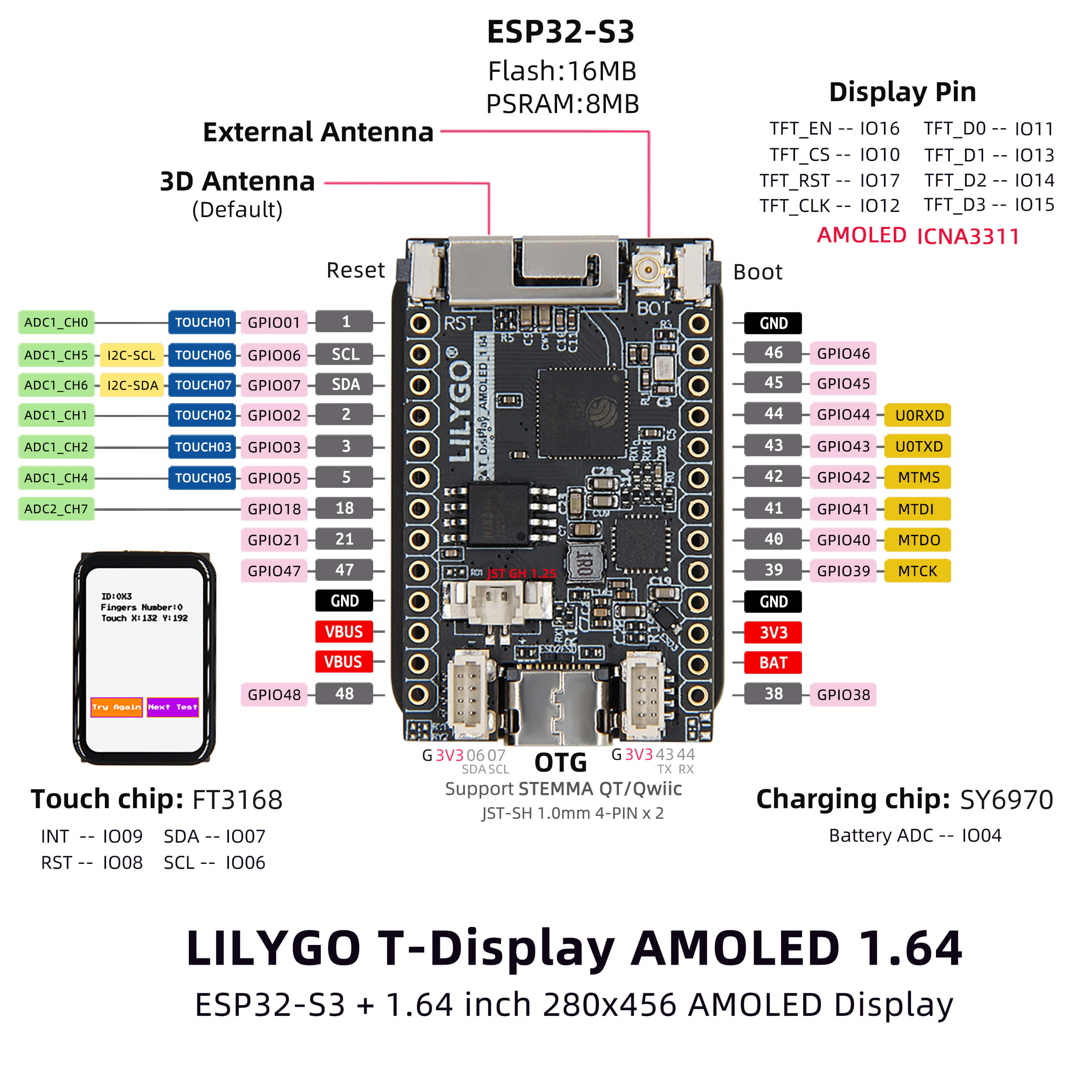

Pin Diagram

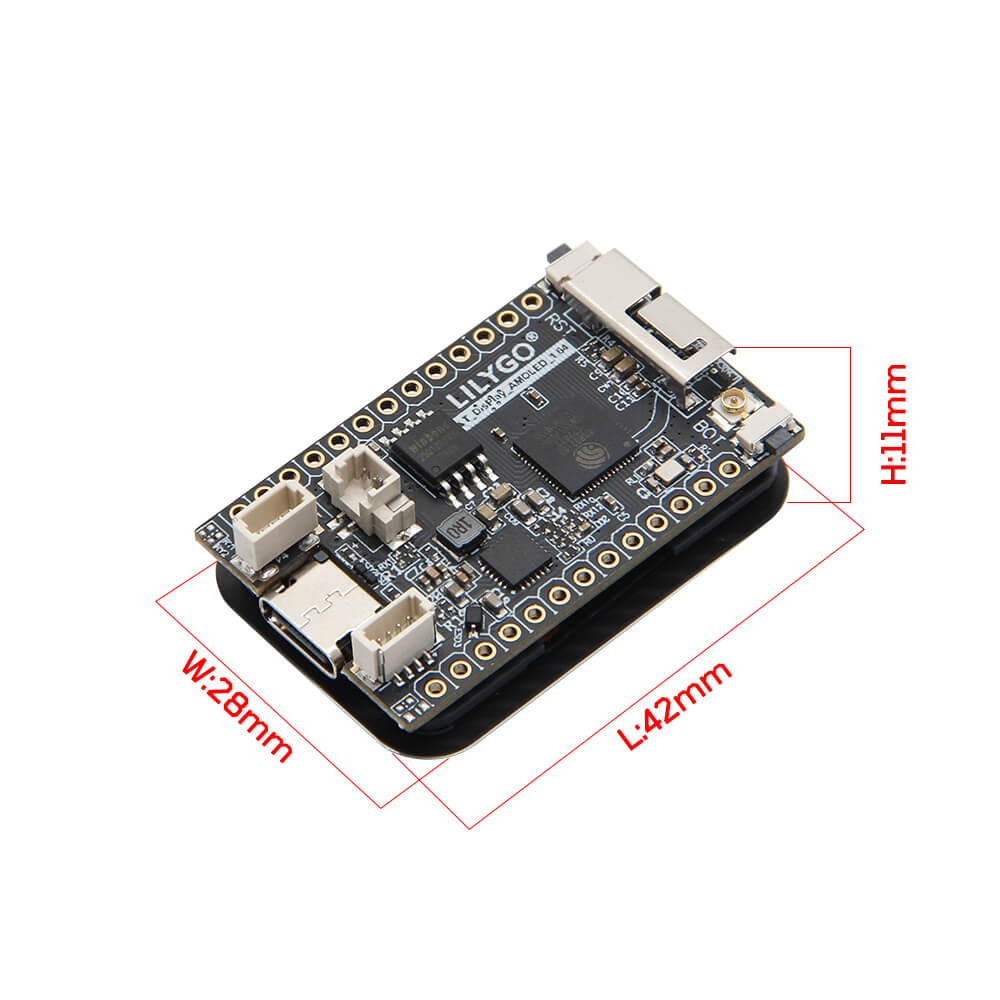

Size For Reference

1.75 Inch


1.64 Inch

1.43 Inch

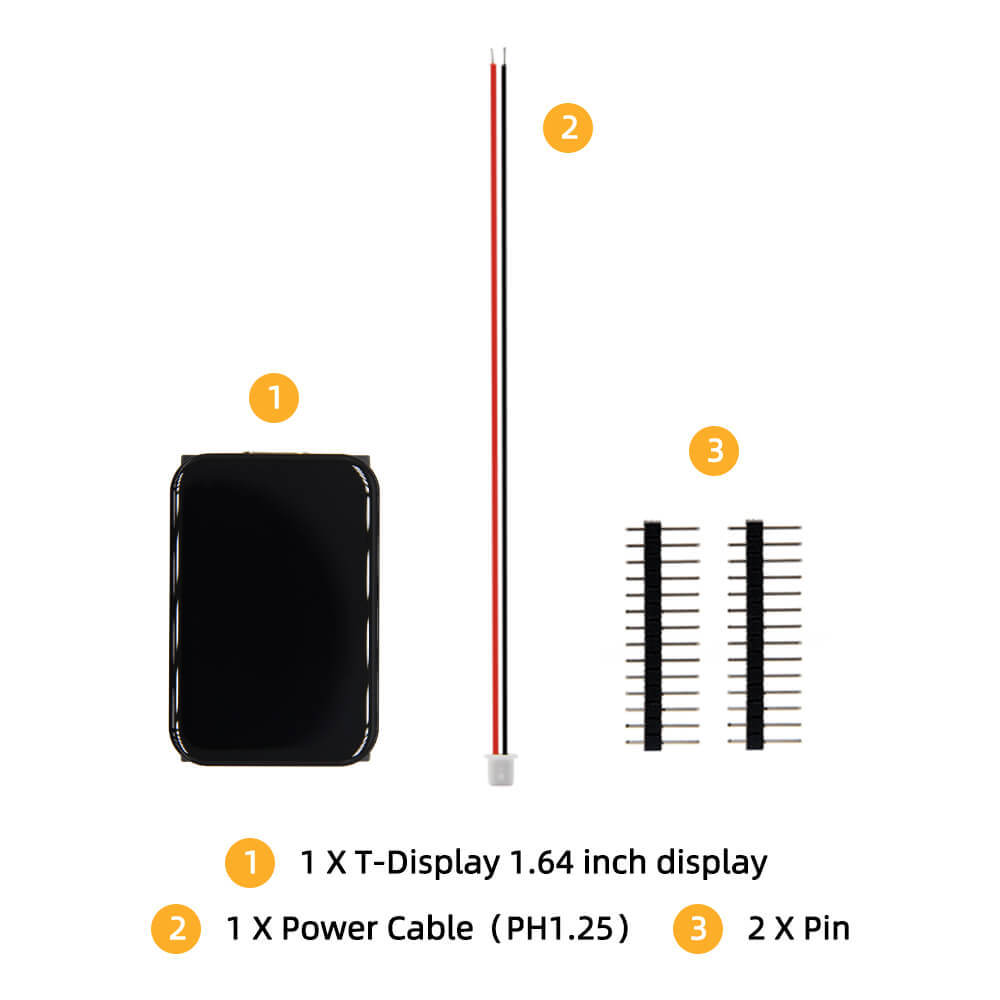

What's In The Box
