T-ETH ELite

T-ETH ELite

$51.66
$51.66
Sale Sold out

About Shipping

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

About Tax

We only charge you for the cost of the product and shipping, no taxes are included.

It can be used as LoraWan gateway mode, and the Lora+GPS expansion board can be realized by stacking the Lora Mesh mode.

Specifications

MCU  ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Arduino, PlatformlO-IDE, ESP-IDF
Flash 16MB
PSRAM 8MB
Size 50 X 67mm
USB Charging 5V 500mA


W5500 Ethernet Module

Supports Protocols  TCP, UDP, ICMP, IPv4, ARP, PPPoE

Sample Code For Reference [Github]

If you need technical support please check the link to find more details.

T-ETH ELITE

--See how it works😎--

Combination For Reference

  1. T-ETH-ELITE
  2. Gateway Shield
  3. LTE Sheild

  1. T-ETH-ELITE

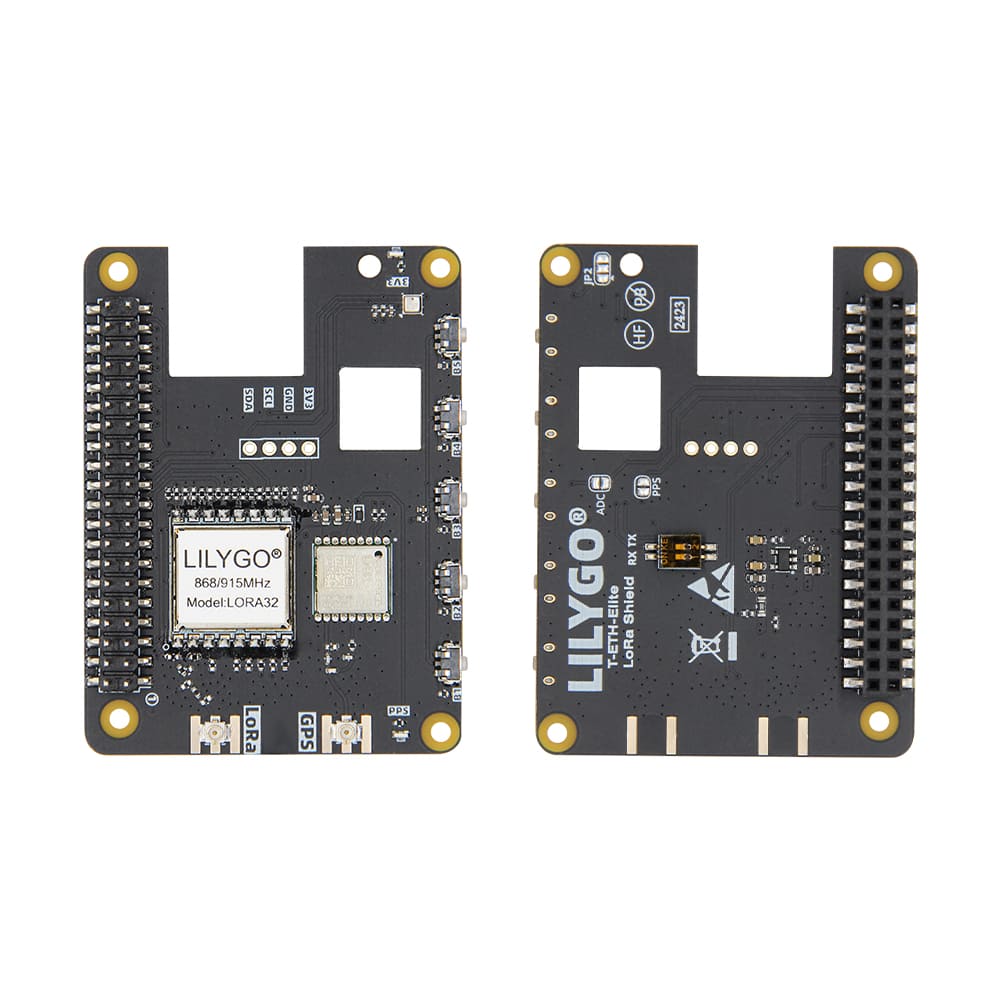

  2. Lora Shield
  1. T-ETH-ELITE
  2. LTE Sheild
  1. T-ETH-ELITE
  2. Gateway Shield

T-SX1302 not included



Size


Pin Diagram
