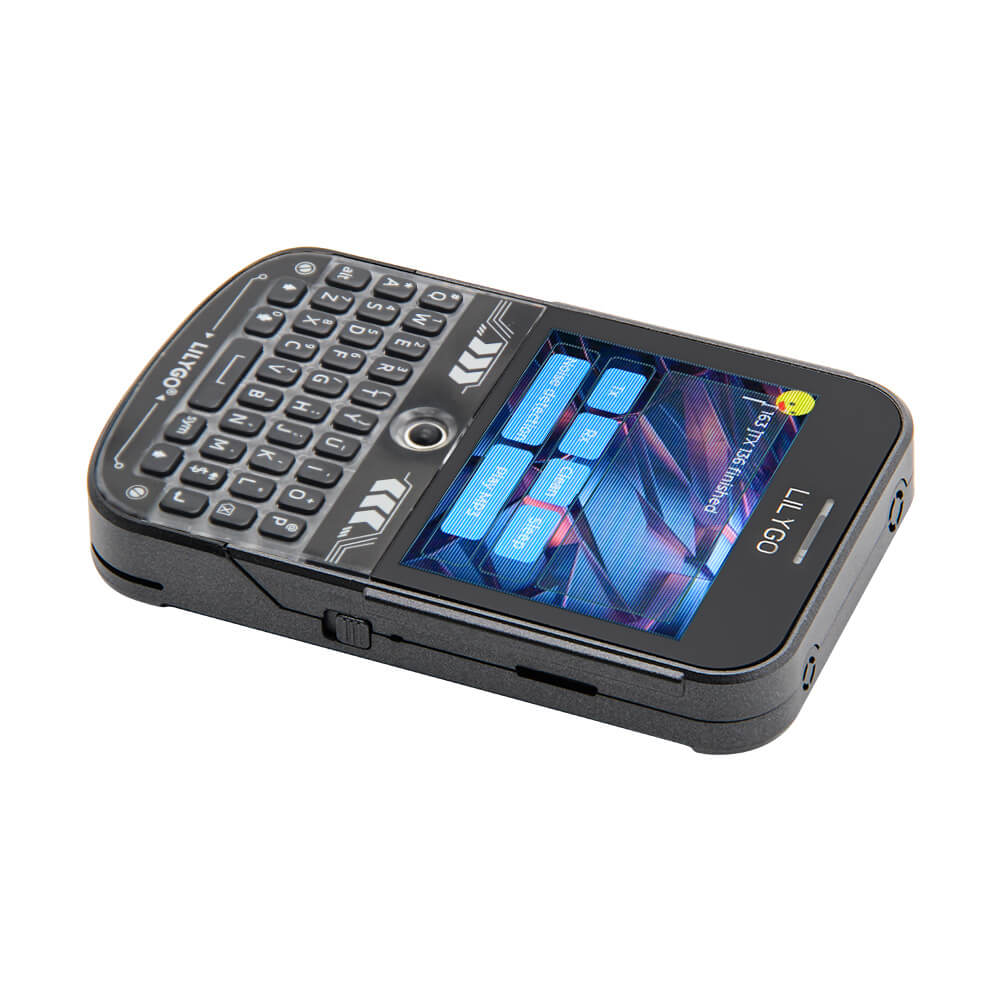

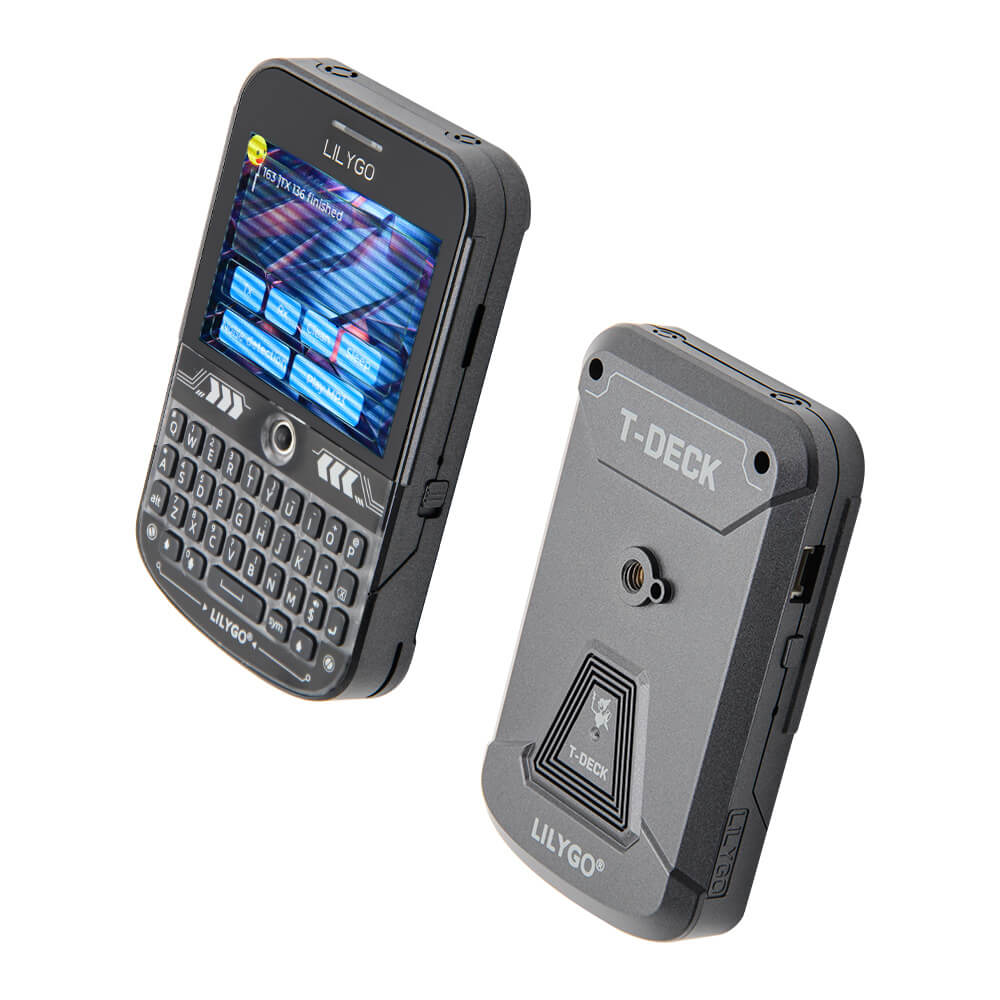

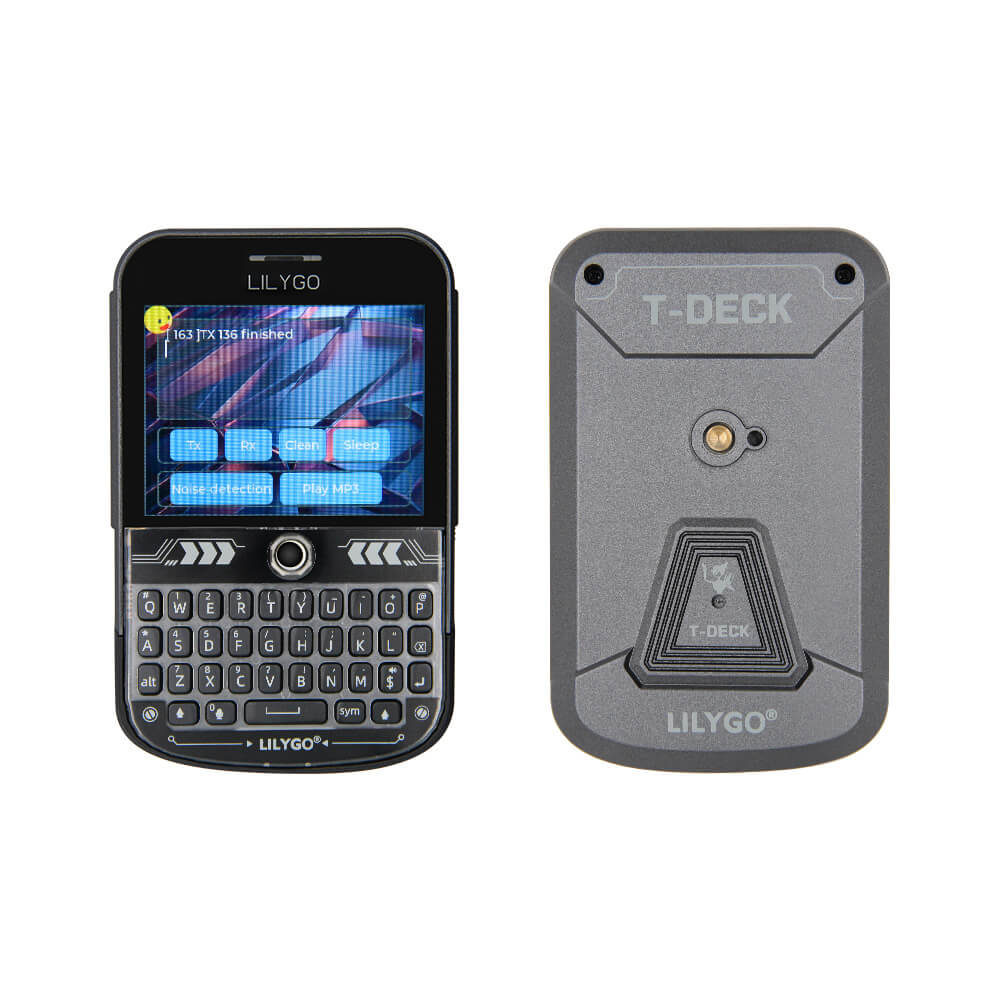

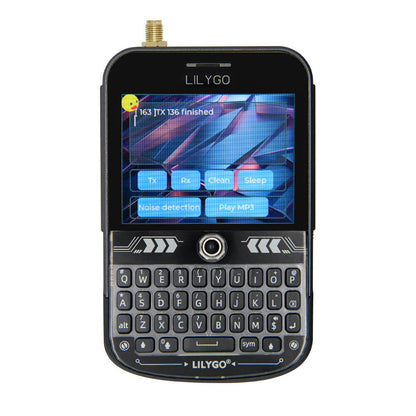

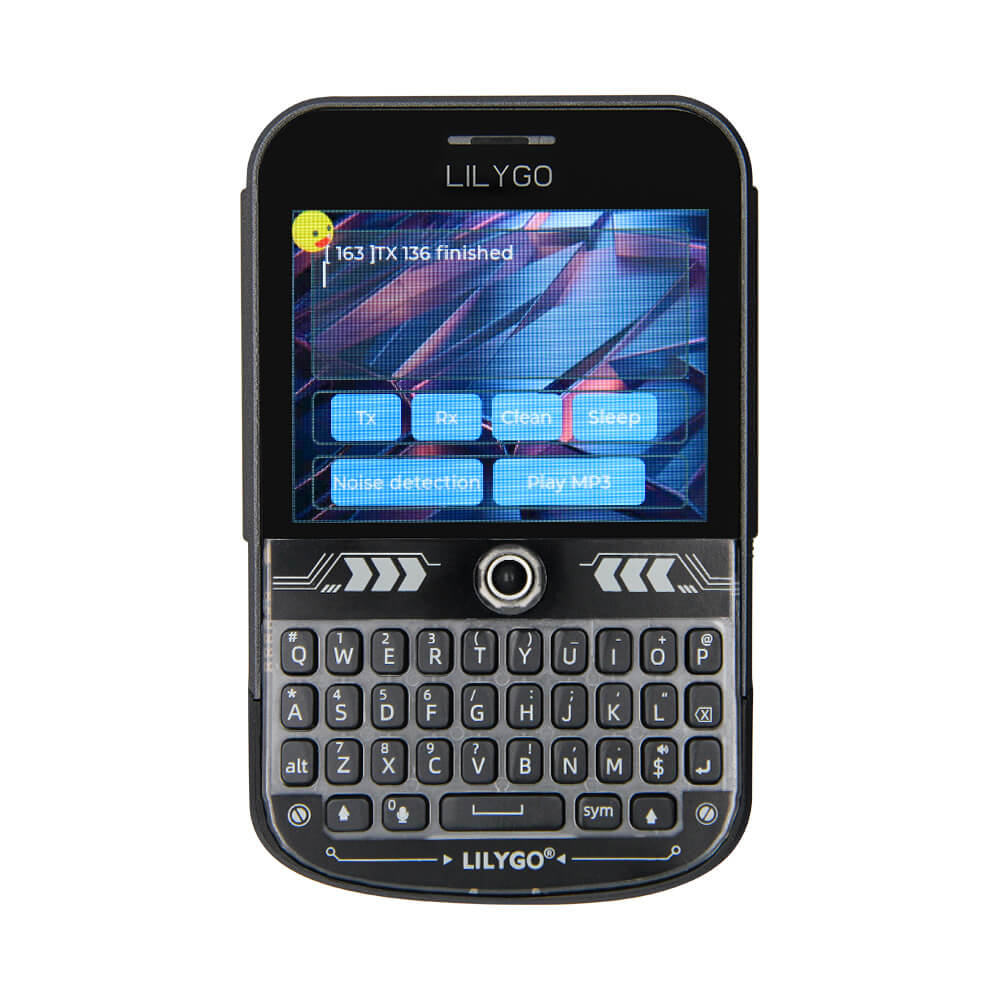

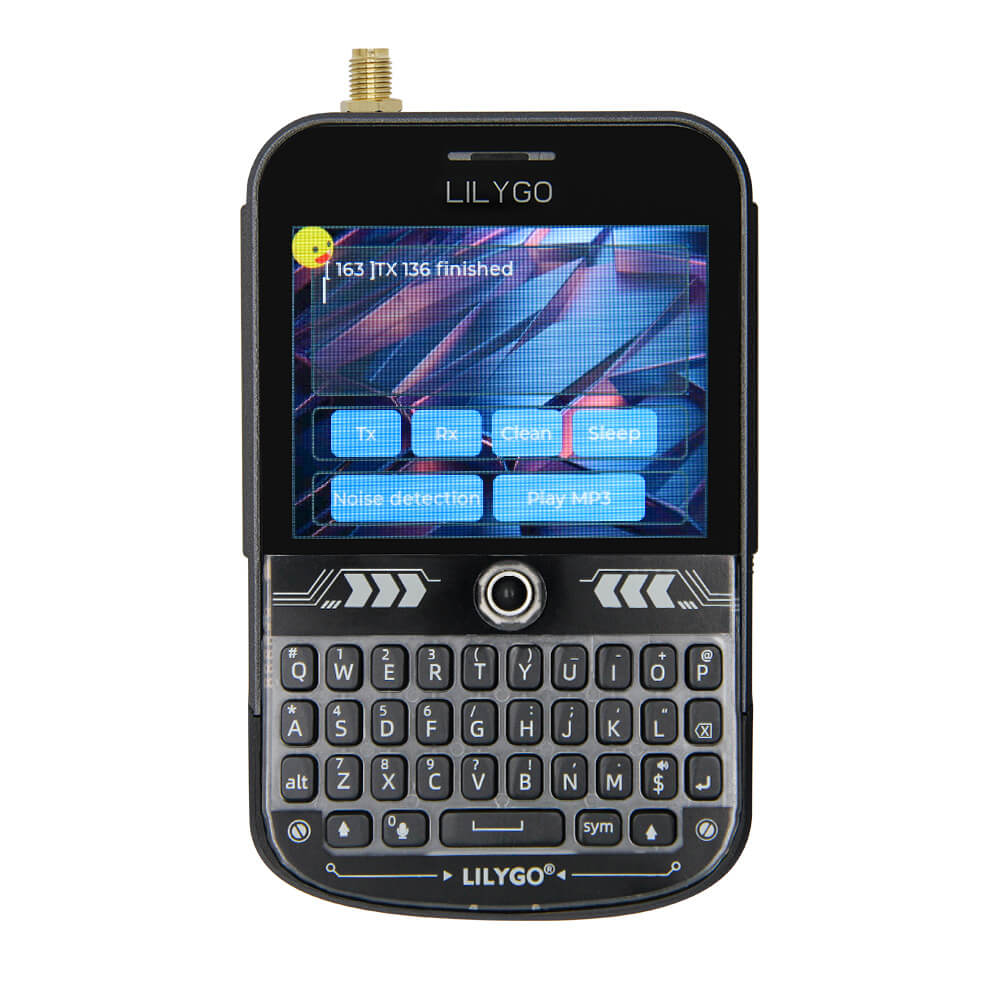

T-Deck Plus

T-Deck Plus

Choose the right firmware version for your needs, MIC certified

$70.99
$70.99
Sale Sold out
Firmware
Frequency

About Shipping

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

About Tax

We only charge the product cost and shipping cost.

1. For Standard Express Order: You may not need to deal with customs clearance, just need to pay attention to the track of the parcel, but this is not absolute, if your parcel is inspected by the customs, then you need to assist in dealing with customs clearance.

2. For DHL/ FedEx Order: You need to deal with the relevant customs clearance matters, as well as pay the tariff, the specific amount of tariff please pay attention to the policy of your country.

----------------------

The above tariffs are for reference only, please pay attention to your country's tax policy for more detailed instructions, if you need our help or have questions please feel free to contact us.

Upgraded based on T-Deck, mainly added GPS module, and Built-in 2000 mah battery

Specifications

MCU ESP32-S3FN16R8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development Arduino, PlatformlO-IDE, Micropython
Flash 16MB
PSRAM 8MB
Battery ADC PIN IO04
Onboard functions  GPS,TF Card,Microphone,Speaker

 2.8 inch ST7789 SPI Interface IPS LCD:

Resolution: 320 x 240 Full viewing angle
 SX1262 LoRa Transceiver
Transmit power +22dBm
Frequency Optional  433/868/915Mhz

Tech Support



ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

 💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

What's In The Box

915Mhz/ 868Mhz

915Mhz/ 868Mhz/ 433Mhz  External antenna

View full details
