T-PCIE

T-PCIE

ESP32 SIM Series Nano Card Composable Wireless Development Board

$46.36
$46.36
Sale Sold out

About Shipping

Methods & Delivery Time

  1. Standard Express: 25-30 Days
  2. YunTu Express : 10-20 Days
    (Company name can't be used consignee)
  3. DHL: 10-17 Days
  4. FedEx: 10-17 Days

Please note that all delivery times are estimated for reference only.

Check More Info: Shipping Policy

About Tax

We only charge you for the cost of the product and shipping, no taxes are included.

Since AXP192 is out of production, it is now replaced by AXP2101 and
the old and new versions will be delivered randomly.

------------------------------------------------------------------------------------

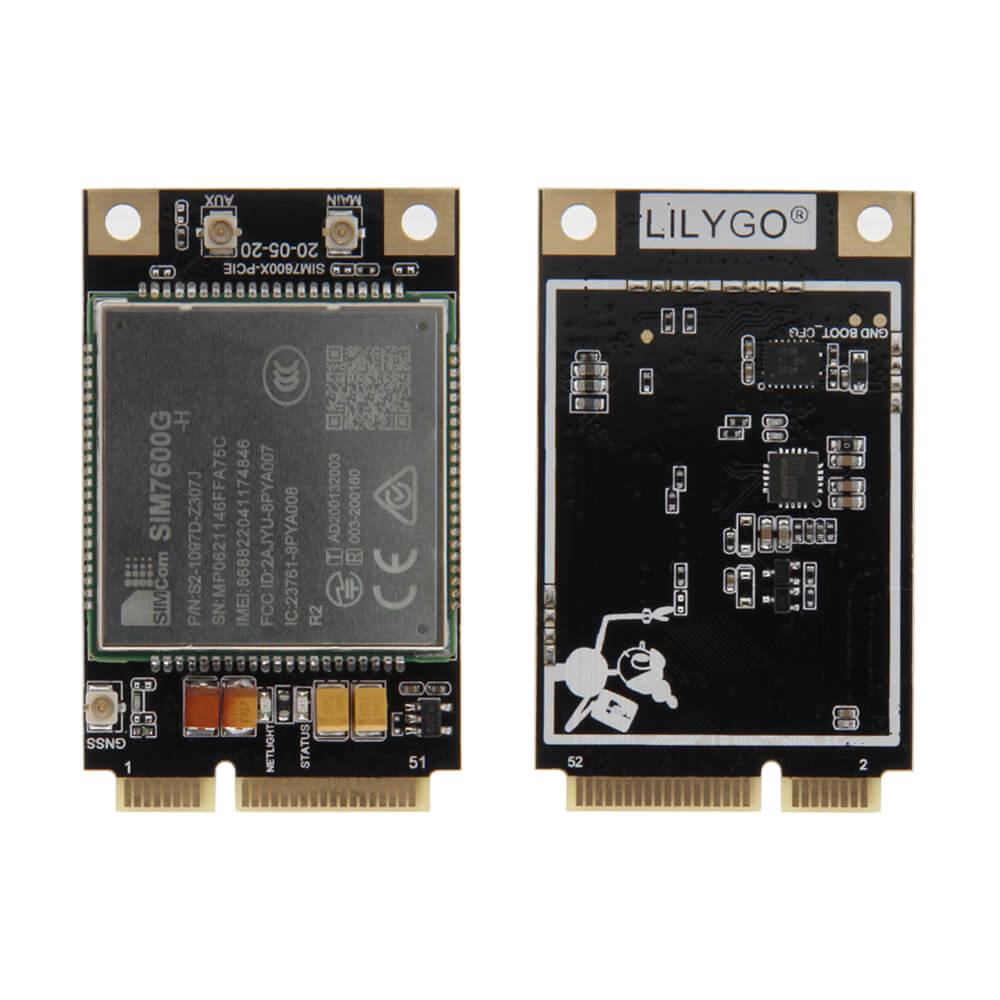

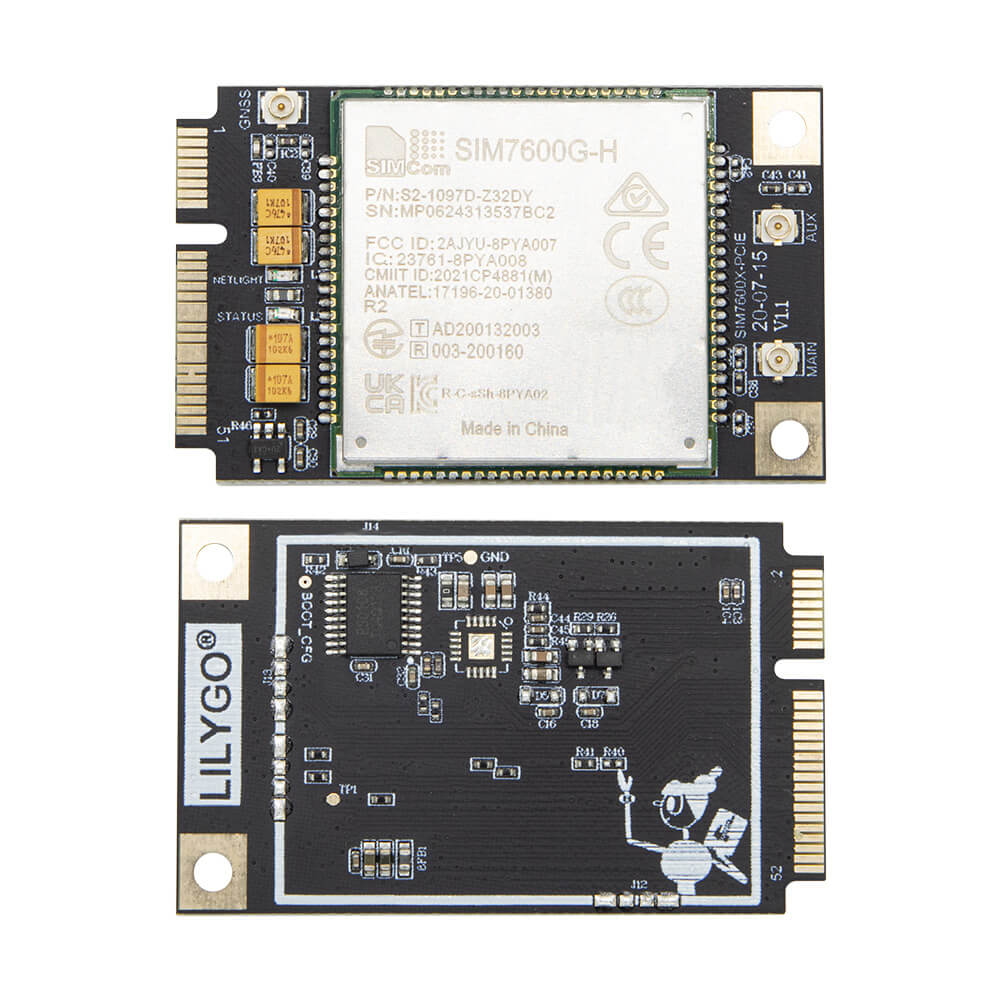

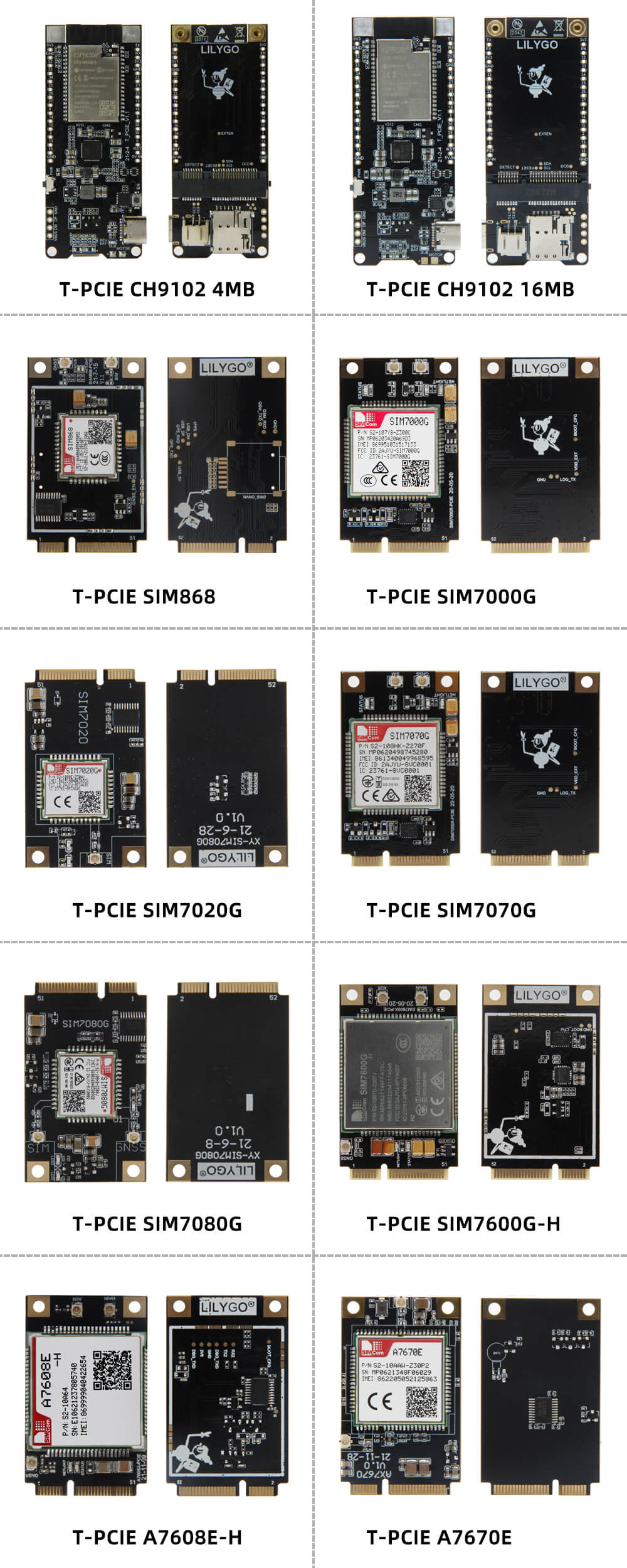

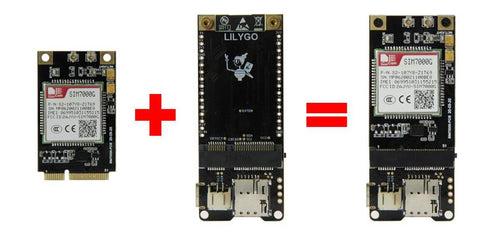

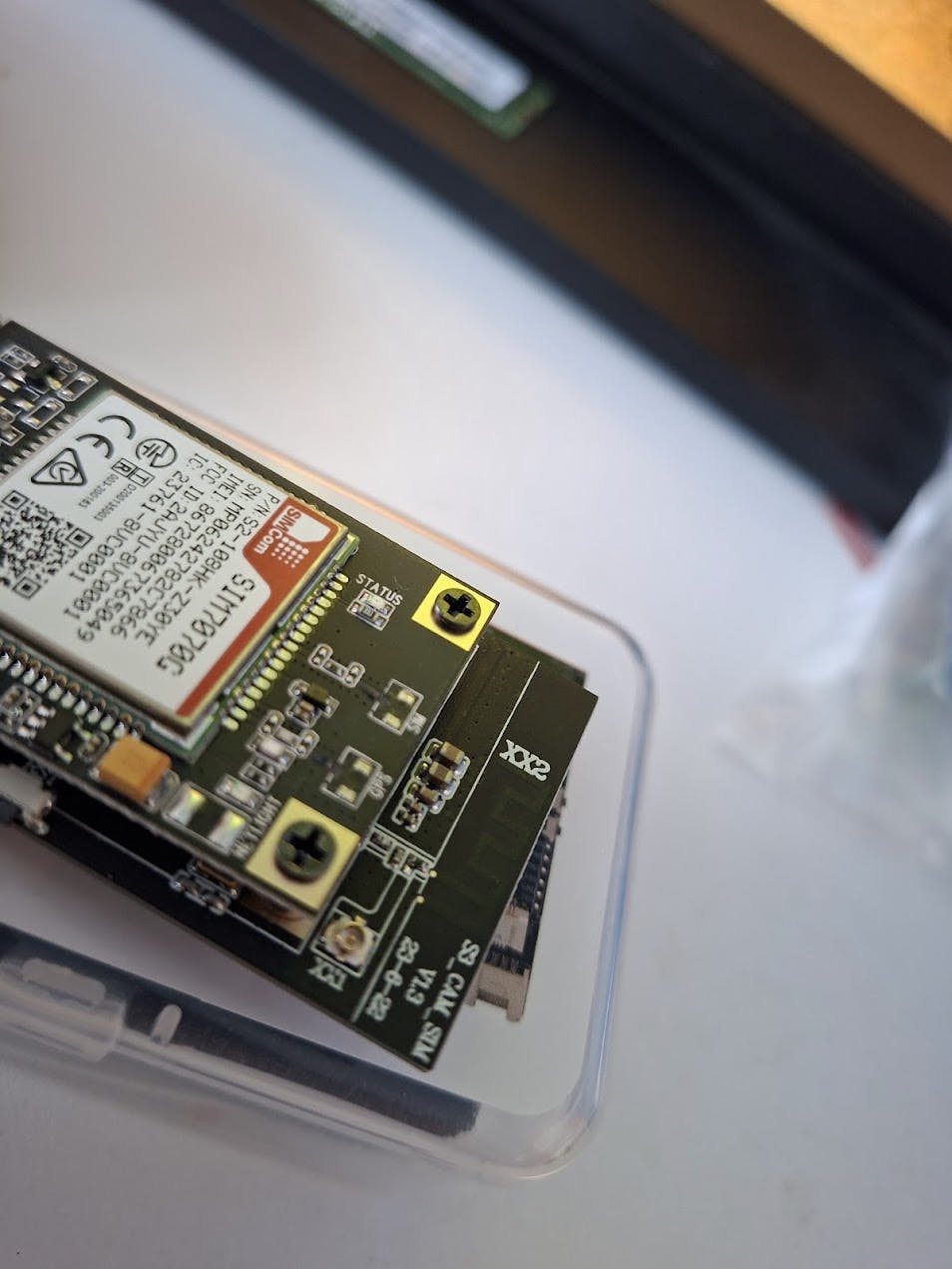

This T-PCIE is equipped with a 4.0H socket, which is used to link the T-PCIE SIM module. We have many T-PCIE SIM modules, you can match freely, we have SIM868, SIM7000X, SIM7600X, SIM7020X, SIM7070X, SIM7080X, A7608X-H, and A7670X.

LILYGO®  2022/4/8

Hardware Specifications

Chipset

ESP32-WROVER-B/E(B and E are shipped randomly)

FLASH

4MB/16M

PSRAM

8MB

SRAM

520 kB SRAM

Button

PWR Power Switch,Reset

USB to TTL

CH9102F

On-board clock

40MHz crystal oscillator

Peripherals

SIM Nano Card Slot,Mini PCIE Card Slot

Antenna

Onboard antenna(Default)

Working voltage

2.7V-3.6V

Working current

-

Sleep current

About 700uA

Working temperature range

-40℃ ~ +85℃

Size

75*33*10.5mm

Weight

14.5g

Power Supply Specifications

Power Supply Input

USB 5V/1A

Charging current

500mA

Battery Input

3.7-4.2V

Charge IC

AXP192

JST Connector

2Pin 2.0mm

USB

Type-C


Technology Support [Github]

If you need technical support please check the link to find more details.

T-PCIE

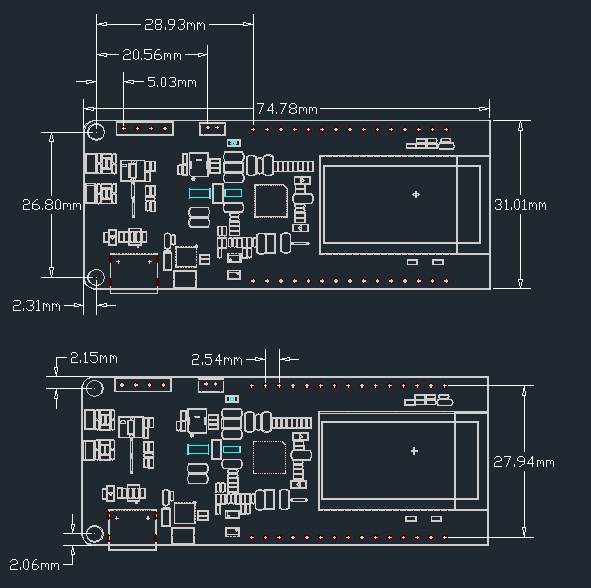

1. Size

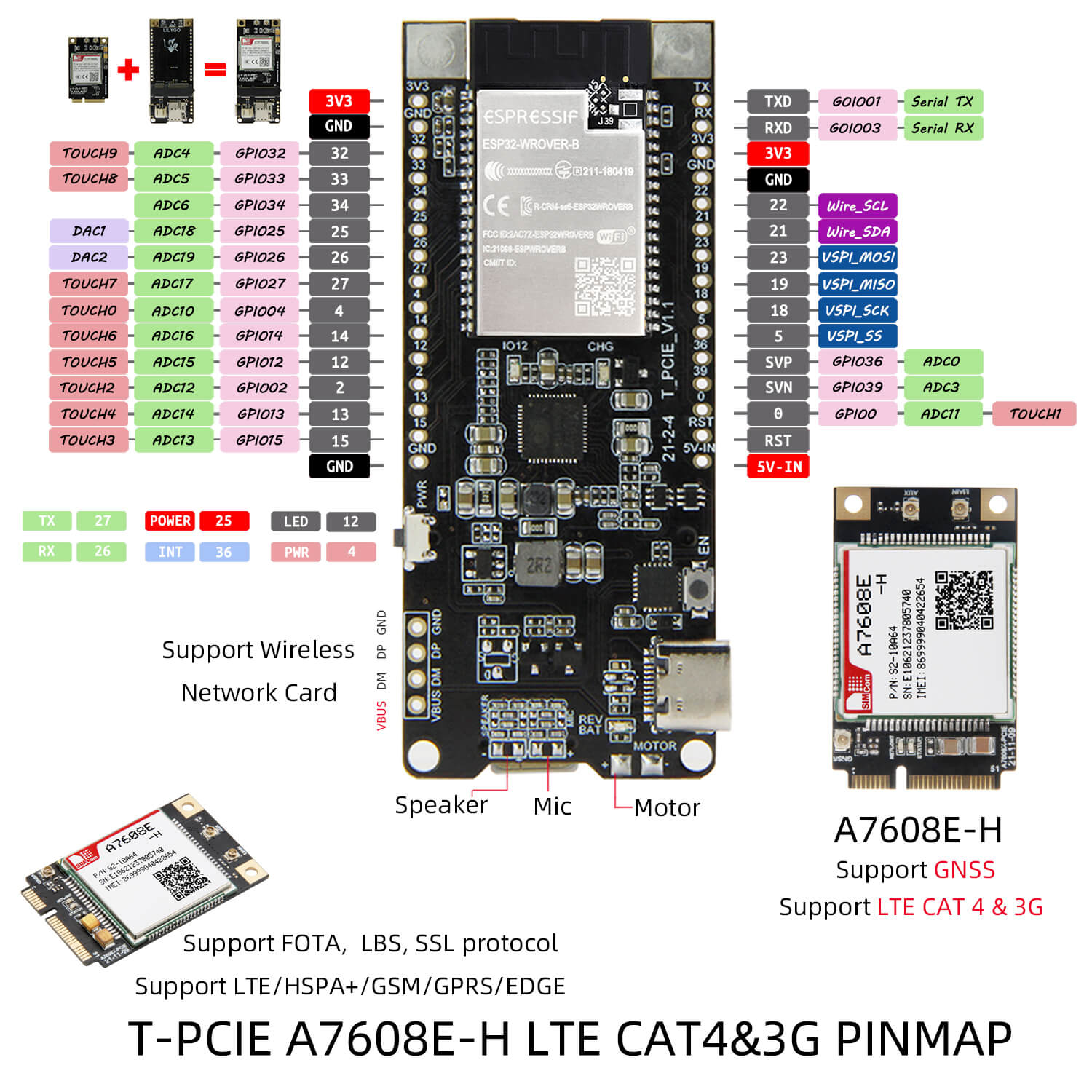

 2. Pin Diagram

3. Appearance

T-PCIE CH9102

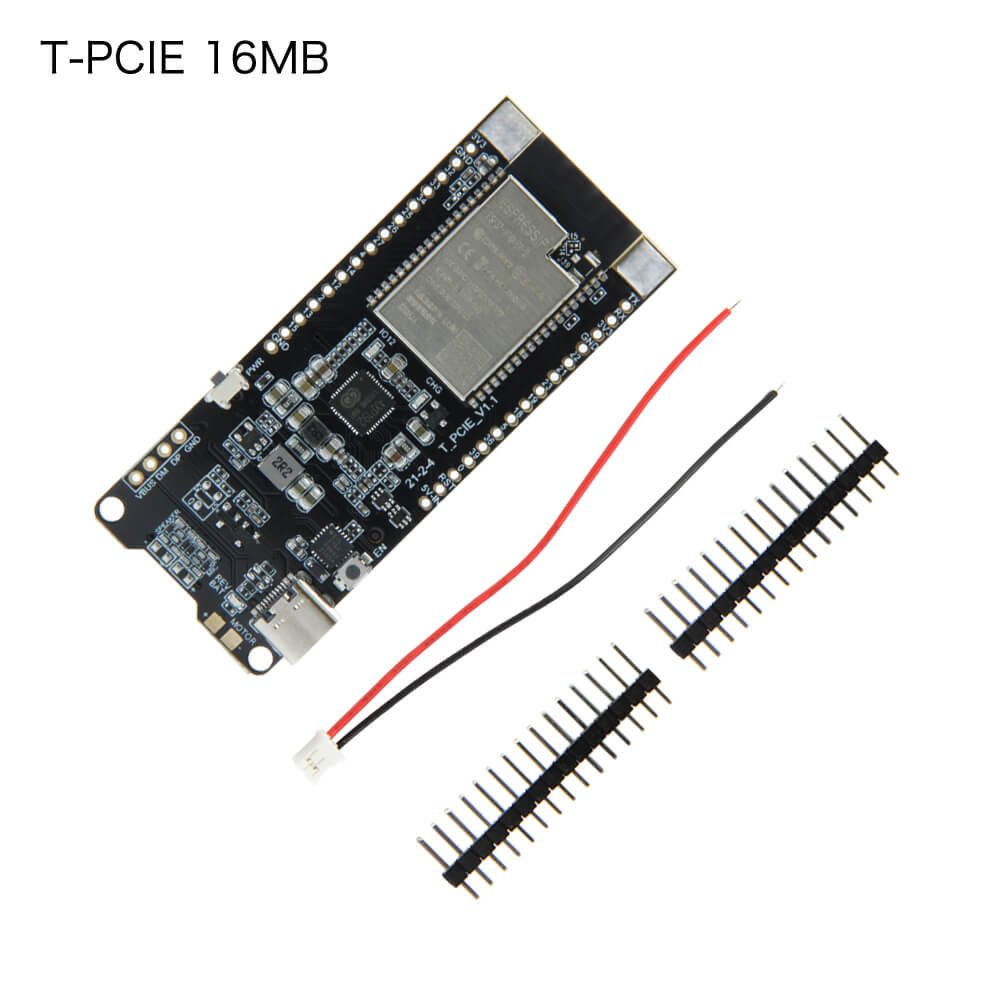

  • 1 XT-PCIE CH9102 4MB/ 16MB
  • 1 X Charging Cable
  • 2XPin

T-PCIE

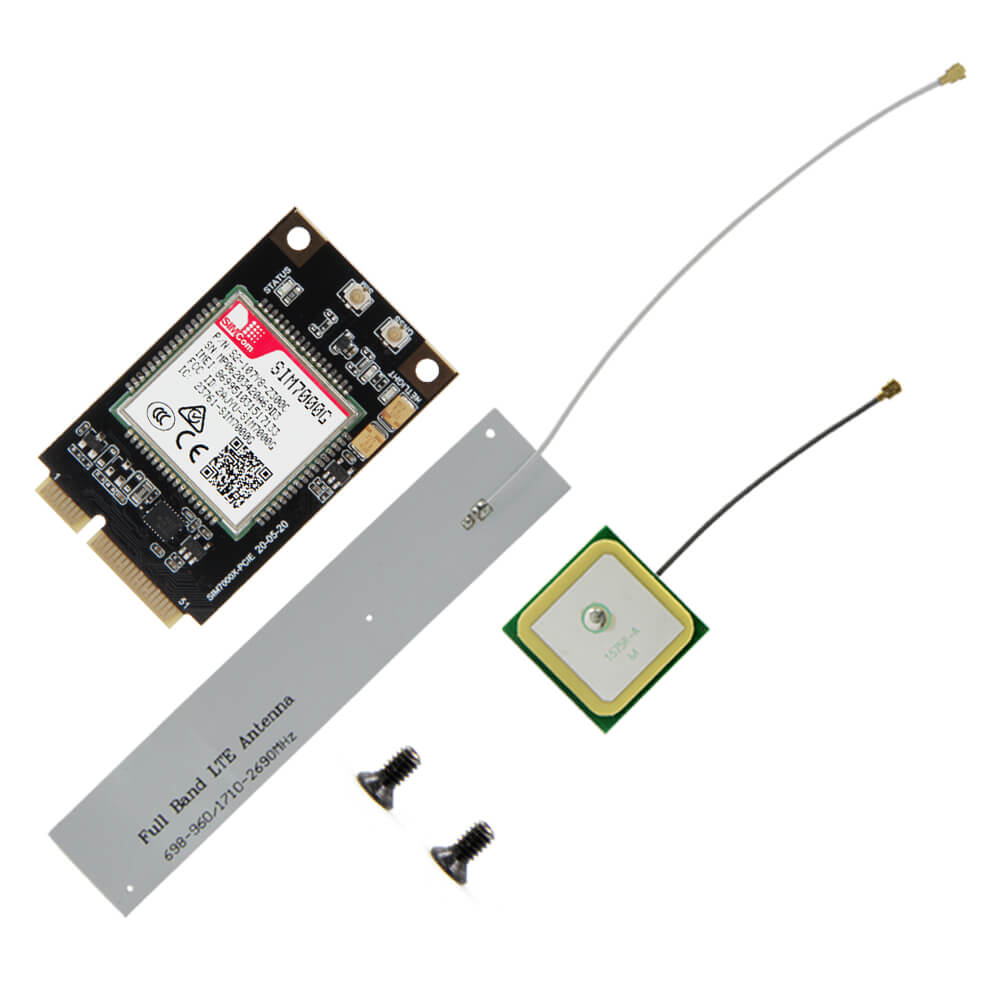

  • 1X SIM module [no MCU on board]
  • 1X LET Antenna
  • 1X GPS Antenna
  • 2X Screw

[Note: The SIM module is for reference only, the specific model depends on your purchased version ]
[No MCU on board, you need to purchase the main control module separately and then use it together. ]



View full details

  • Who can use

    It's easier to master these development boards with a basic programming knowledge [engineers/ students/ makers, etc..]

  • Accelerated processing

    International orders please make sure your address is in English
    For Hong Kong, Macau and Taiwan orders, please note your personal ID.

  • Got a question

    Click on the bubble in the bottom right corner where some frequently asked questions are answered, or just drop us a line.
